25" Two Stations Wide Belt Sander 50-510 S3
Regular price
$0.00
Shipping calculated at checkout
SKU: 50-510S3
Characteristics
- Two working stations offering optimum sanding
- 1st Station: light calibrating roller up to 0.5 mm with a hard-spiral grooved rubber roller
- 2nd Station: “COMBI STATION” with a smaller roller and a felt platen.
- Maximum capacity of 0,1 mm
- Variable speed feed
- Automatic braking device on motor pulley unit in case of either breakage or run off of the sanding belt
- Pneumatic sanding belts tracking mechanism
- Air pressure safety switch preventing machine start-up without tension on the sanding belts

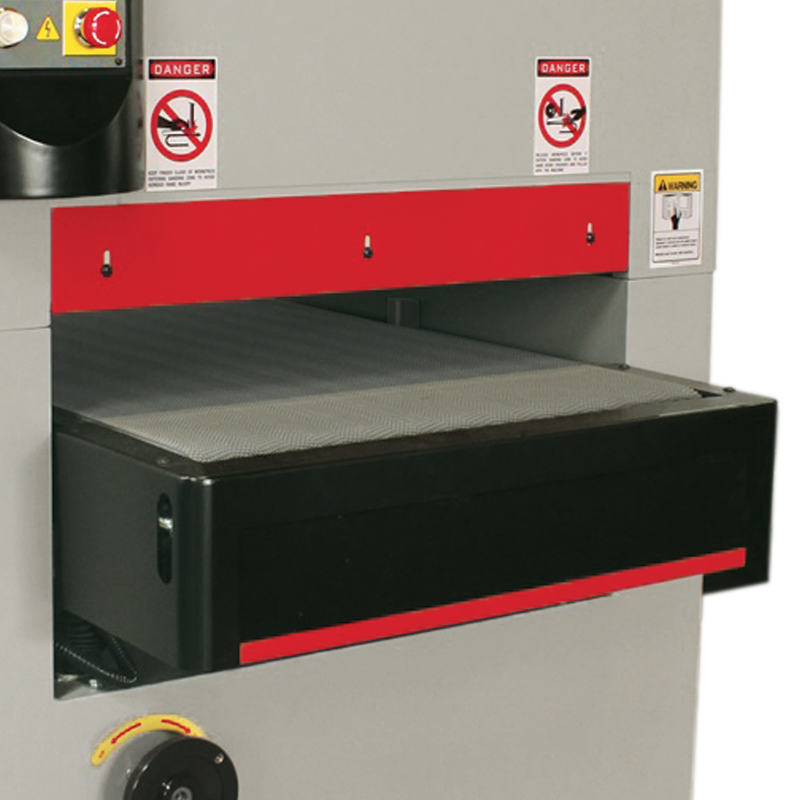

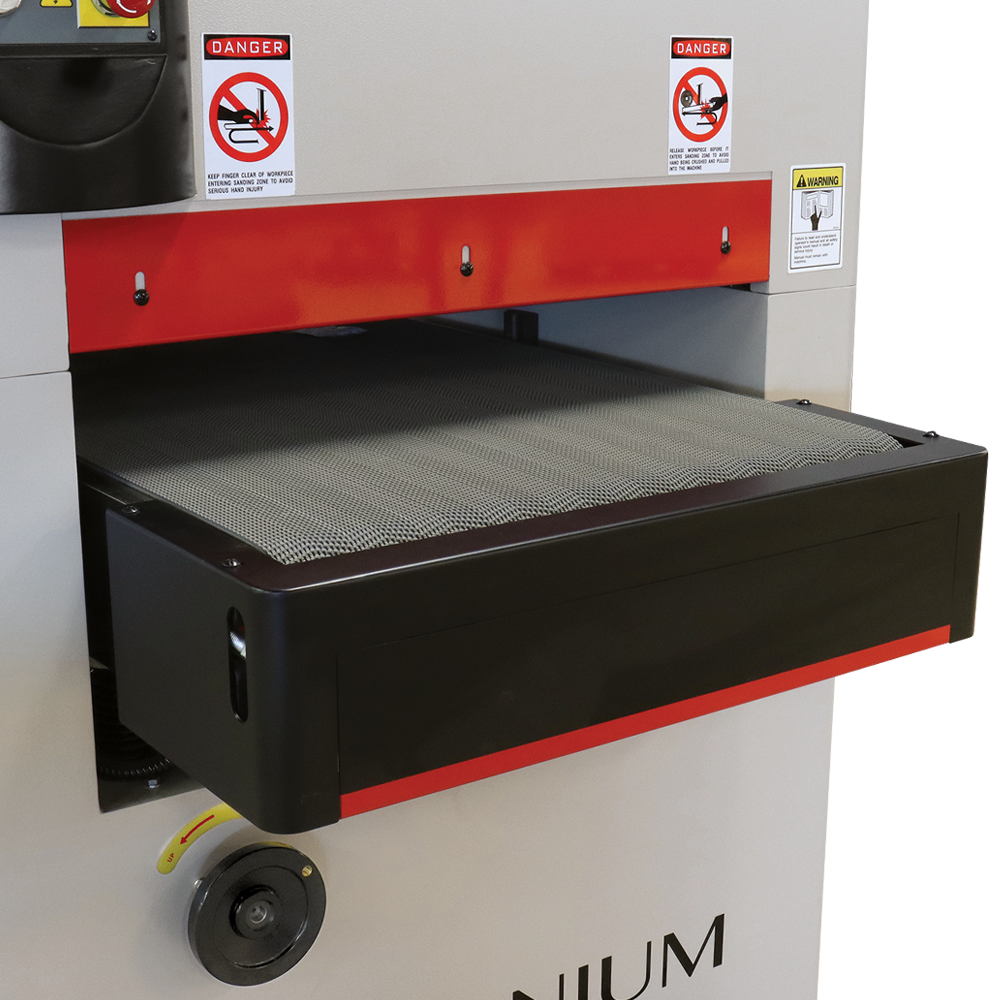

- Motorized table height movement with accurate adjustment.

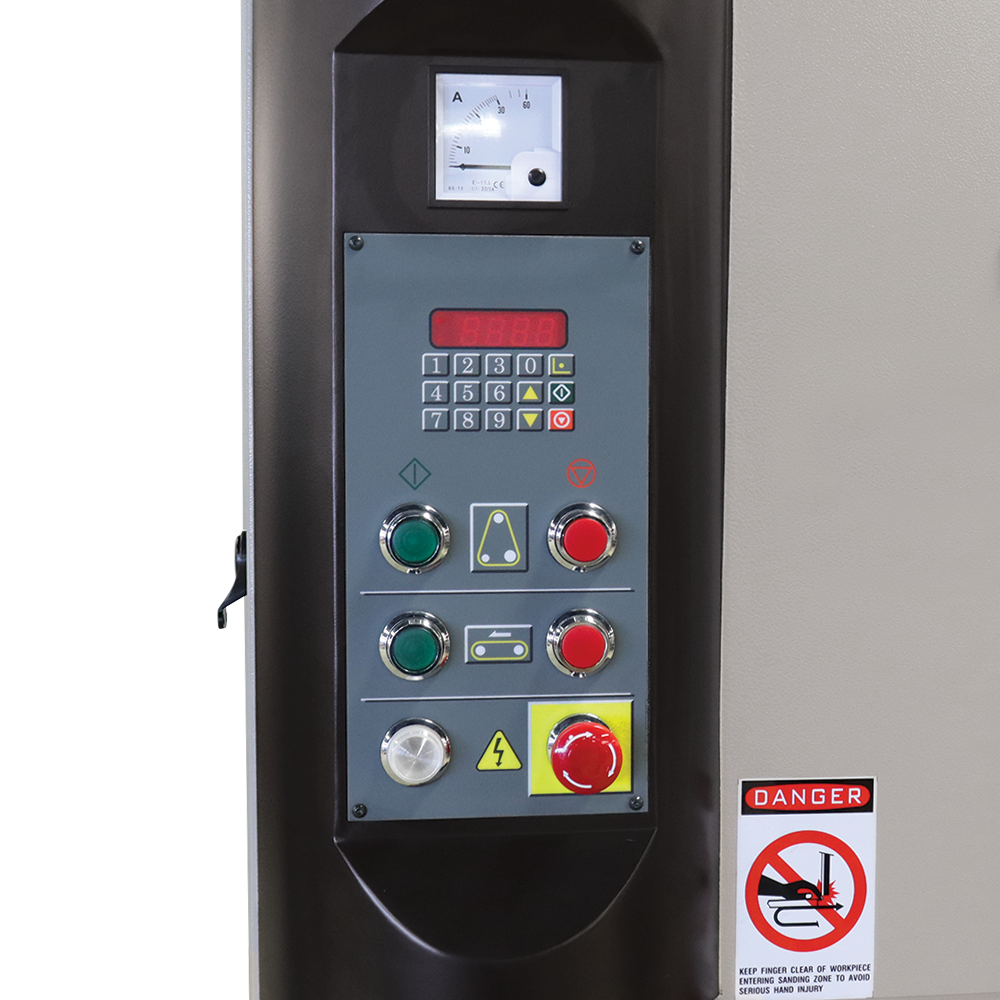

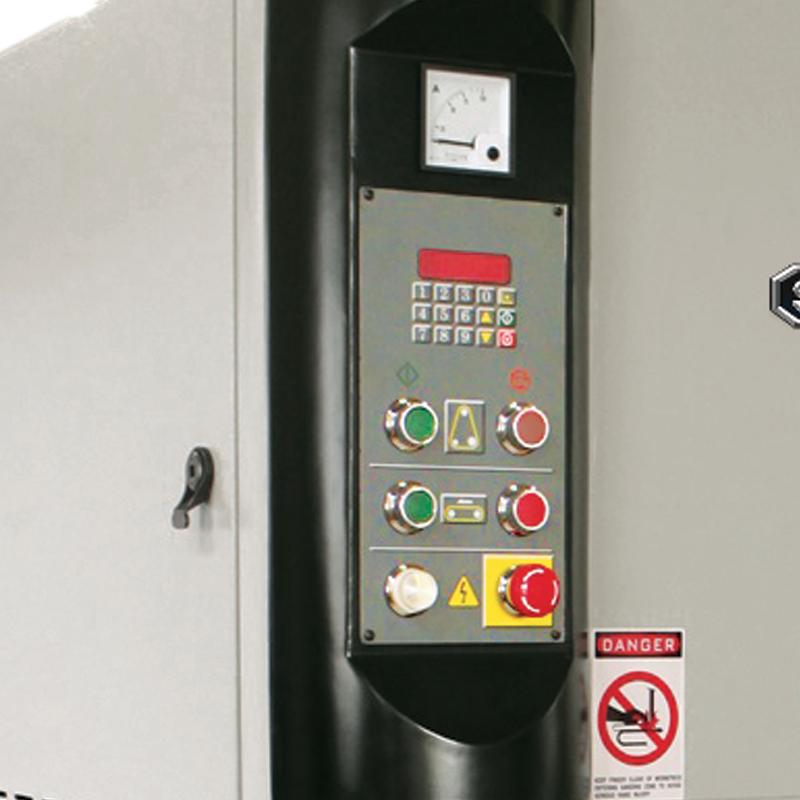

- Amperage / Load meter on sanding belts to monitor belt wear
- Panic bar automatic shut-off when pressed in case of emergency
Technical Specification
| Feed motor |
1 HP |
| Table lift motor |
1/3 HP |
| Max. working width |
24" ( 620 mm ) |
| Max. height |
5,91" ( 150 mm ) |
| Abrasive belt dimensions |
25" x 60" ( 635 X 1524 mm ) |
| Feed speed (variable) |
15 to 49 ft./min |
| Quantity dust outlets |
4 X Ø 5" |
| Approx. Weight |
2645 lb ( 1200 kg ) |
| Dimensions |
63" X 44" X 73" ( 1600 X 1120 X 1850 mm ) |
