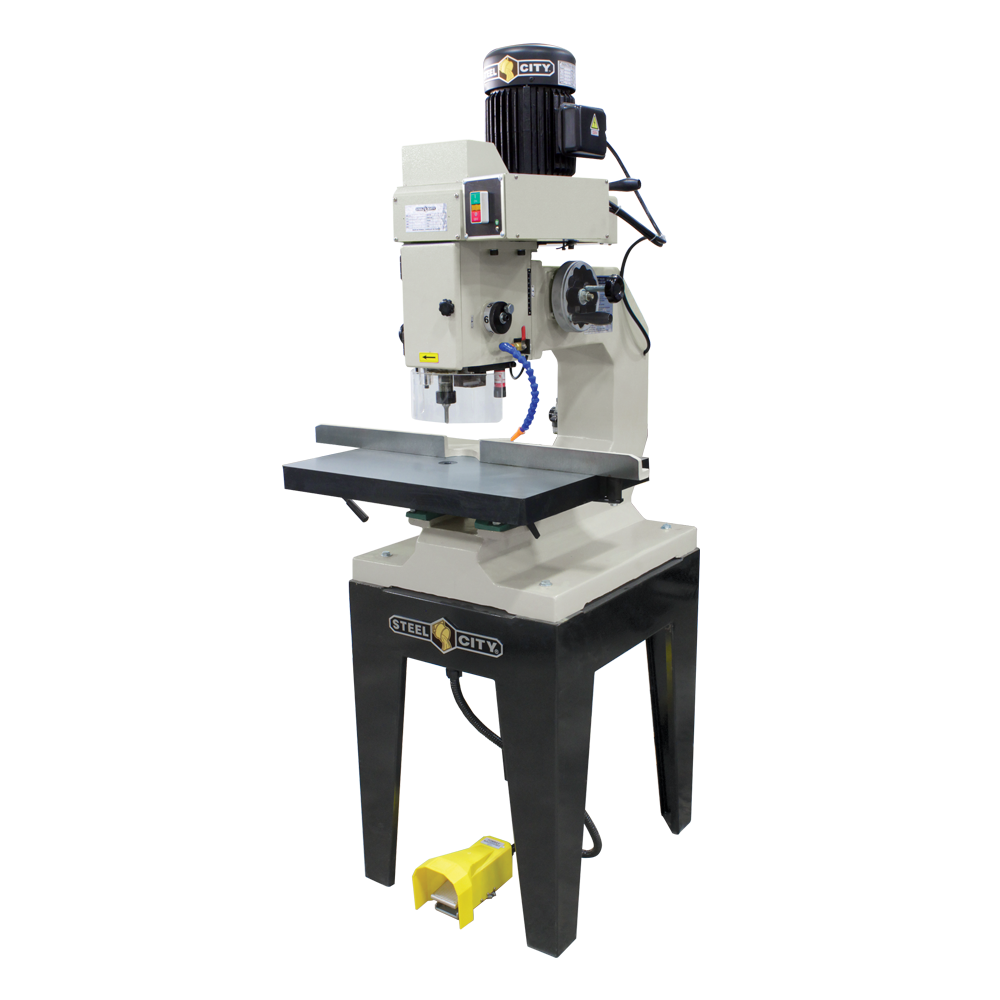

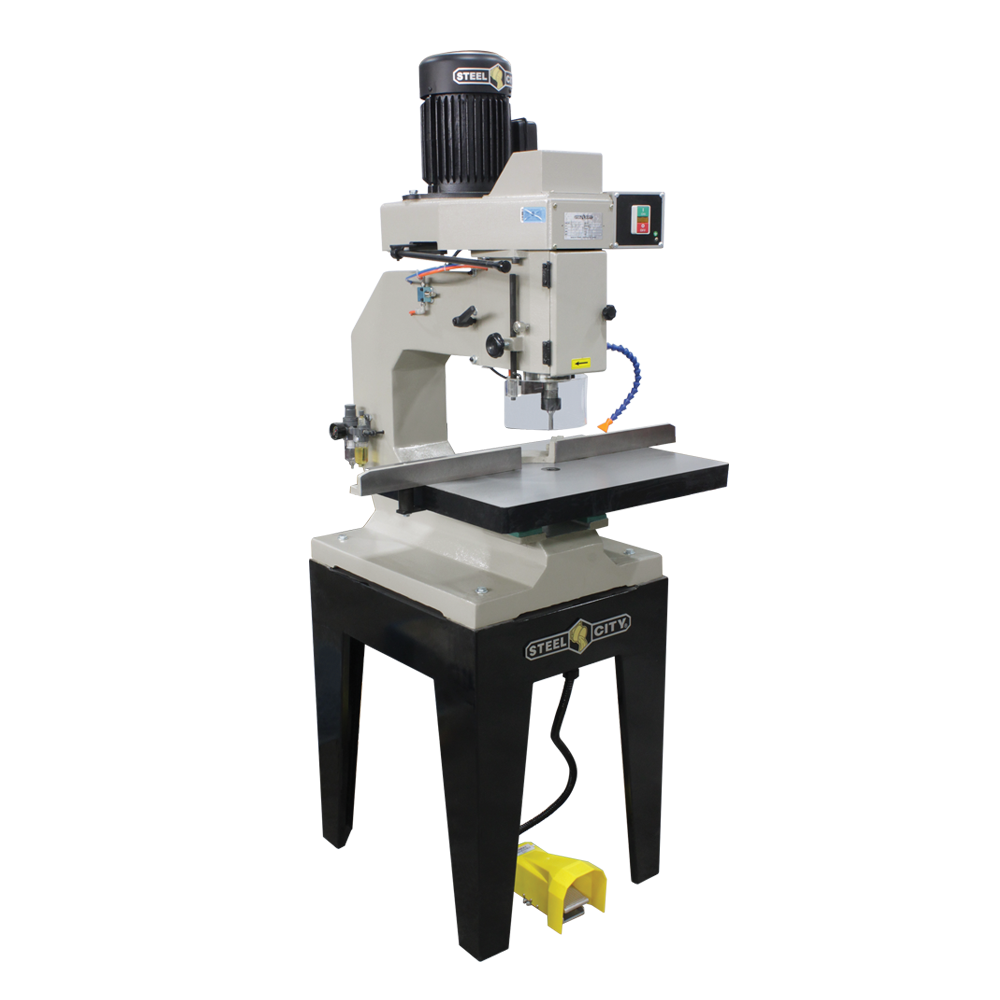

20" Manual Pin Router 45-810 S3
Regular price
$4,199.99
Shipping calculated at checkout
SKU: 45-810S3
Characteristics
- Heavy cast iron construction
- Large cast iron table with fence

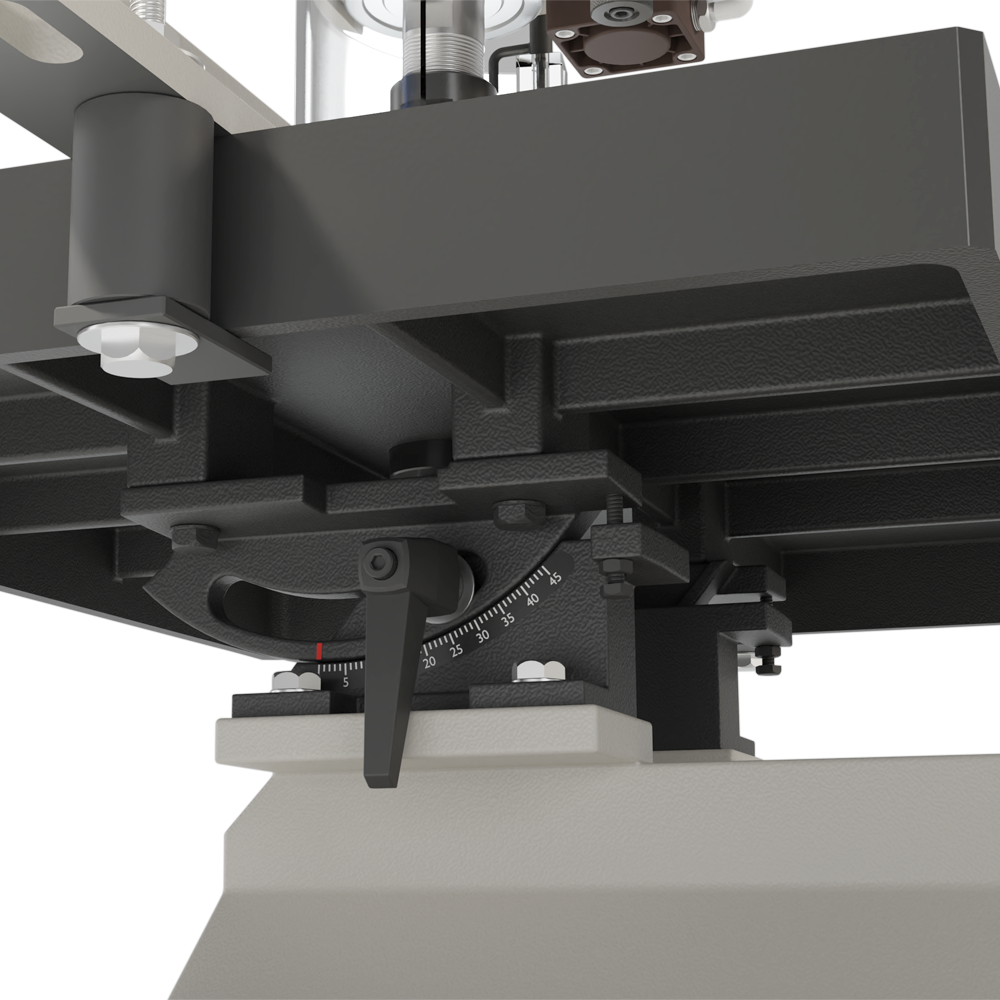

- Table tilts 0 - 45 degrees
- 3 double ended starter pins:
- 5/16”, 7/8” - 7/16”and1/2”

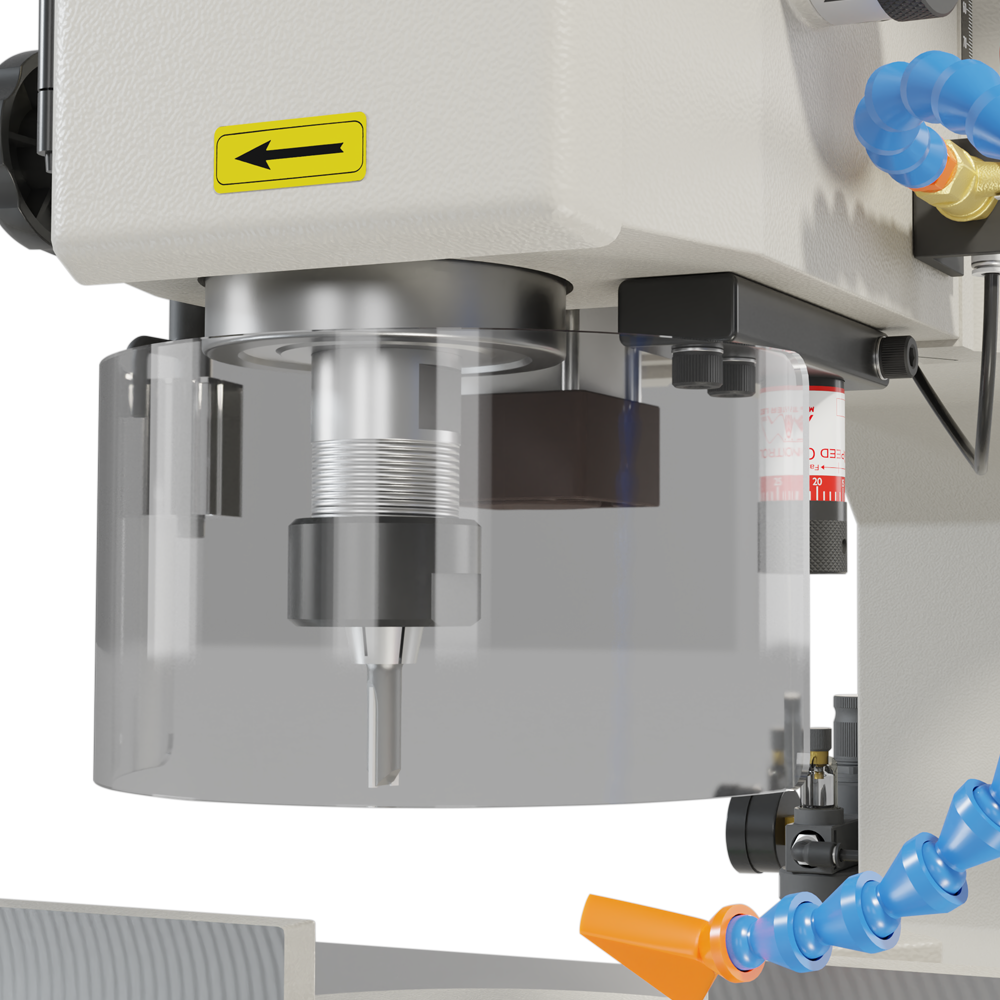

- Transparent acrylic spindle bit guard
- 3 chuck collets : 1/4”, 3/8” and 1/2”

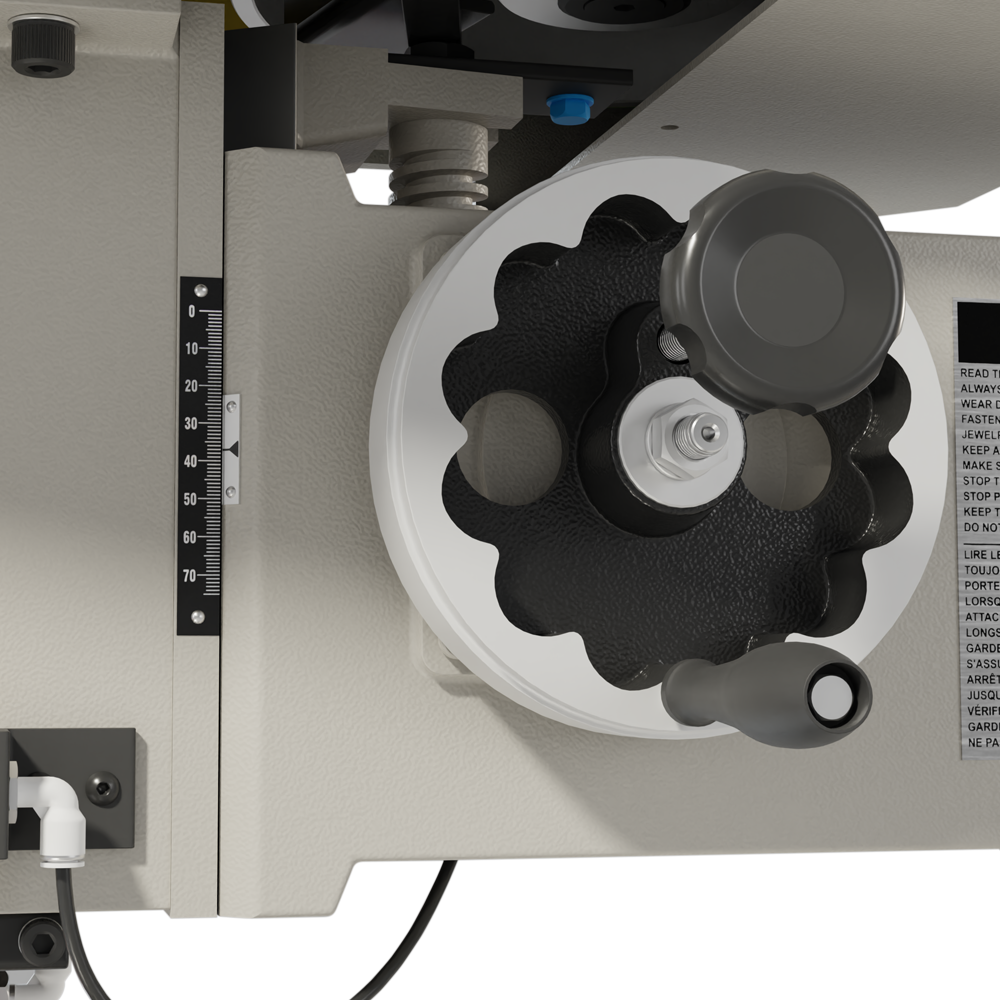

- Revolver type depth stop on spindle
- Lever type spindle brake

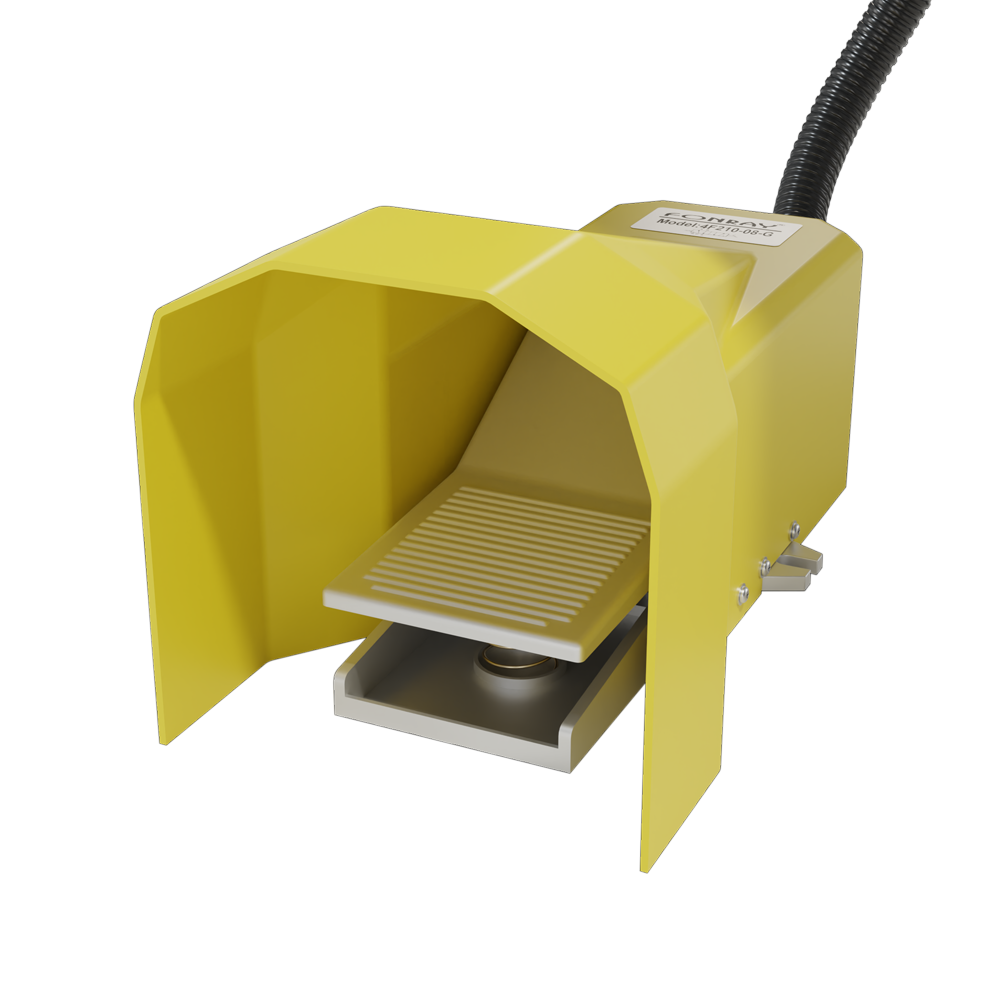

- Foot switch operation
Technical Specifications
| Throat clearance |
550 mm |
|
Spindle motor |
3 HP - 220V - 1ph - 15A |
|
Spindle speed |
20 000 RPM |
|
Spindle stroke |
100 mm |
|
Headstroke |
70mm |
|
Distance from table to chuck |
200 mm |
|
Table size |
610 mm x 460 mm |
|

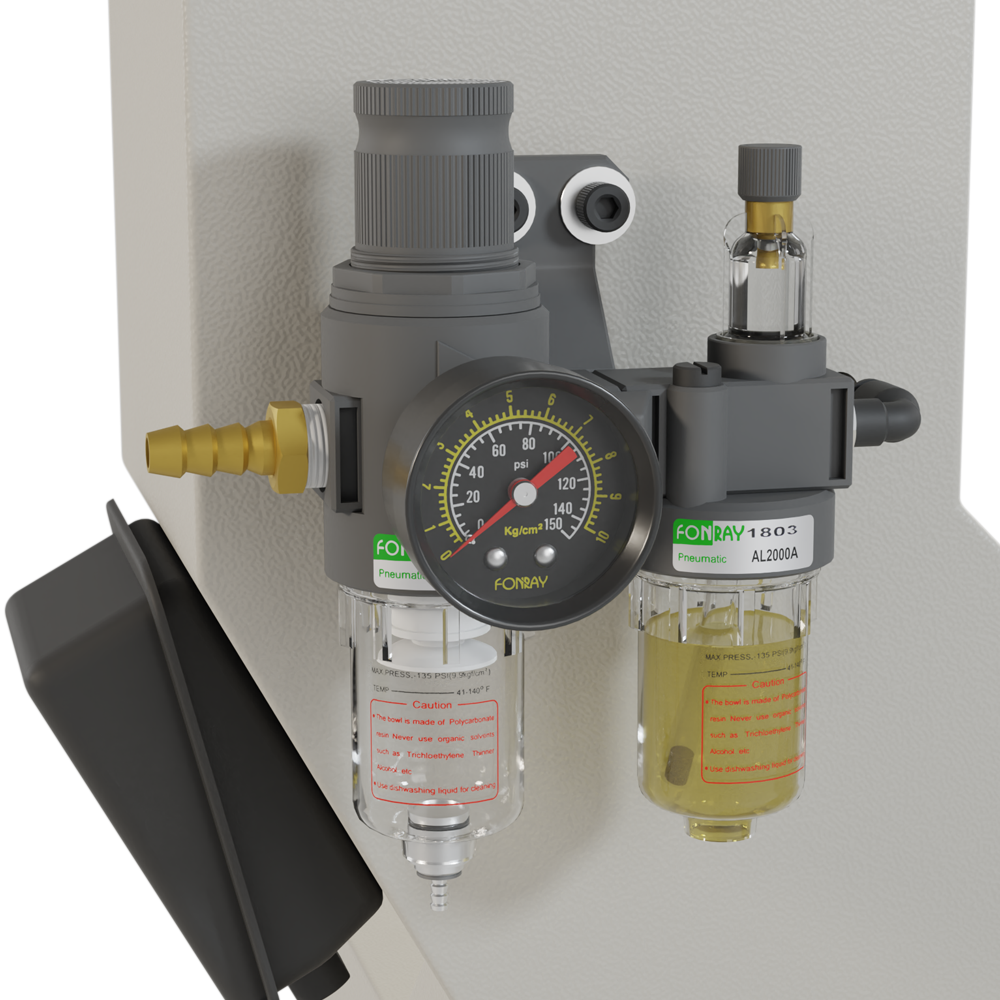

Required air pressure |
90 PSI |
|
Dimensions |
940 mm x 610 mm x 1800 mm |
| Weight |
683 lb ( 310 kg ) |
