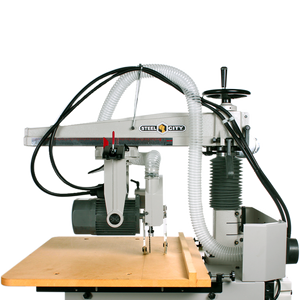

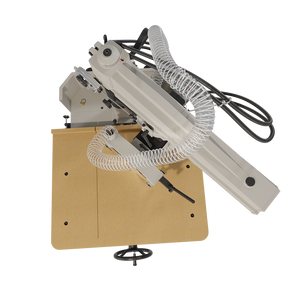

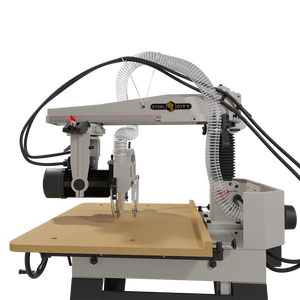

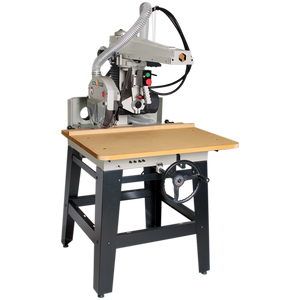

12" Production Radial Arm Saw 10-722
Regular price
$3,999.99
Shipping calculated at checkout
SKU: 10-722S3
Characteristics
- Powerful 3HP motor with brake
- Ultra sturdy cast iron frame on a heavy duty stand

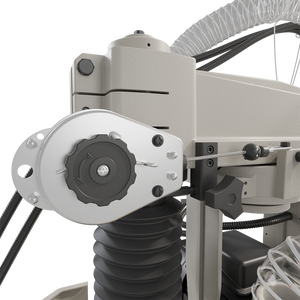

- Exclusive height adjustment by removable front handwheel

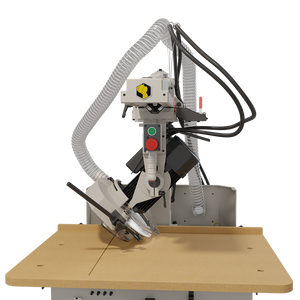

- Precision adjustable indexing with stops at 90 / 45 / 22.5 degrees on both sides for bevel and mitre cuts

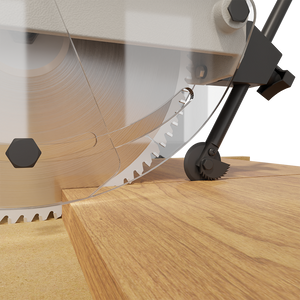

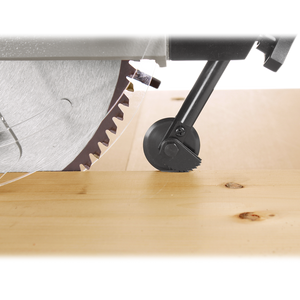

- Transparent blade guard with anti-kickback attachment and splitter

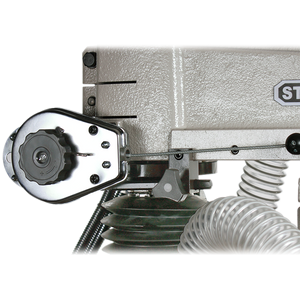

- Mechanical carriage return with adjustable tension

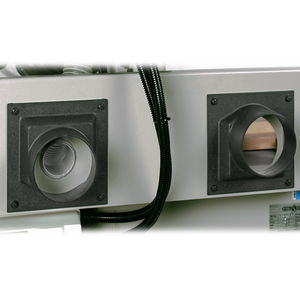

- Dual 4” dust outlet for optimal dust collection

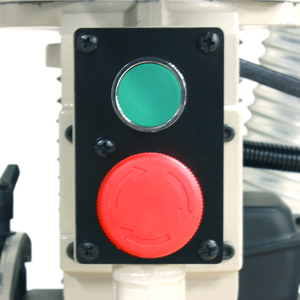

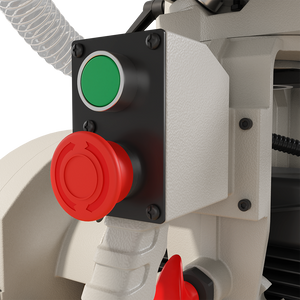

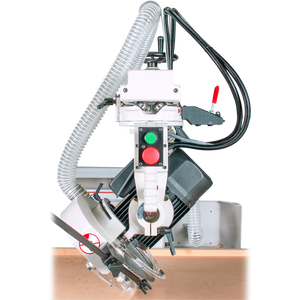

- Lockable magnetic switch with protection overload
Technical Specification
| Blade |
Ø 12" x 1" or Ø 10" x 5/8" |
| Motor arbor |
5/8" with 1" spacer bushing |
|
Maximum capacities (all measures with a 12" blade) |
|
| Depth |
3" ( 76 mm ) |
| Crosscut |
16" ( 406 mm ) in 1" material |
| Rip |
26-3/8" ( 670 mm ) |
| Dado |
13/16" ( 20 mm ) |
| Table size |
27-1/2" x 35-3/8" ( 698 x 899 mm ) |
| Table height |
36-3/4" ( 933 mm ) |
| Overall dimensions |
35-7/16" x 39-3/4" x 63" ( 900 x 1010 x 1600 mm ) |
| Weight |
510 lb ( 231 kg ) |
