1-1/4" Industrial Shaper 45-510 S3
Regular price
$4,499.99
Shipping calculated at checkout
SKU: 45-510S3
Characteristics
- Heavy steel base, 40" x 30" cast iron table
- Motor 5 HP
- 4 speeds, reversible: 4000, 6000, 8000 and 10 000 RPM

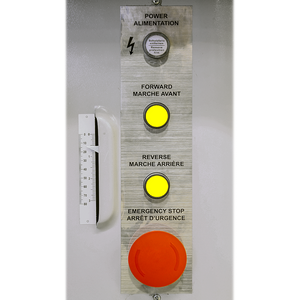

- Lockable magnetic switch

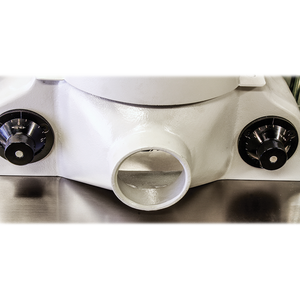

- Adjustable cast iron cutter head guard with 4" dust collection outlet and aluminum fence with fine tune adjustment knobs.

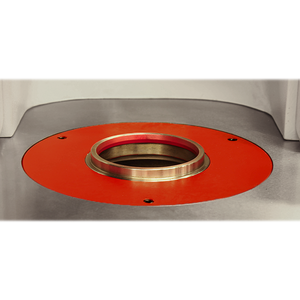

- 3 section table inserts including one with a shoulder

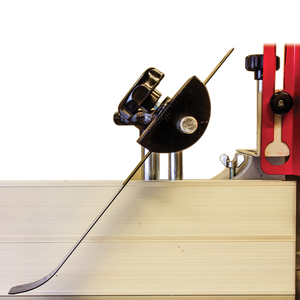

- Horizontal (2) and Vertical (2) spring hold-downs
Technical Specifications
| Motor |
5 HP - 220 V - 1 ph - 26 A |
| Spindle diameter |
1-1⁄4 ” |
| Router bit collet diameters |
1⁄4 ” and 1⁄2 ” |
| Spindle travel |
3-1⁄2 ” ( 90 mm ) |
| Reversible speeds |
4000, 6000, 8000 and 10 000 RPM |
| Fence plate dimensions |
40” x 30” ( 1110 x 760 mm ) |
| Work height |
36-3⁄8 ” ( 920 mm ) |
| Guide dimensions |
(2) 16-1⁄2 ” x 5” ( 420 x 125 mm ) |
| Dust collection outlet |
4” ( 101 mm ) |
| Shipping weight |
740 lb ( 335 kg ) |
