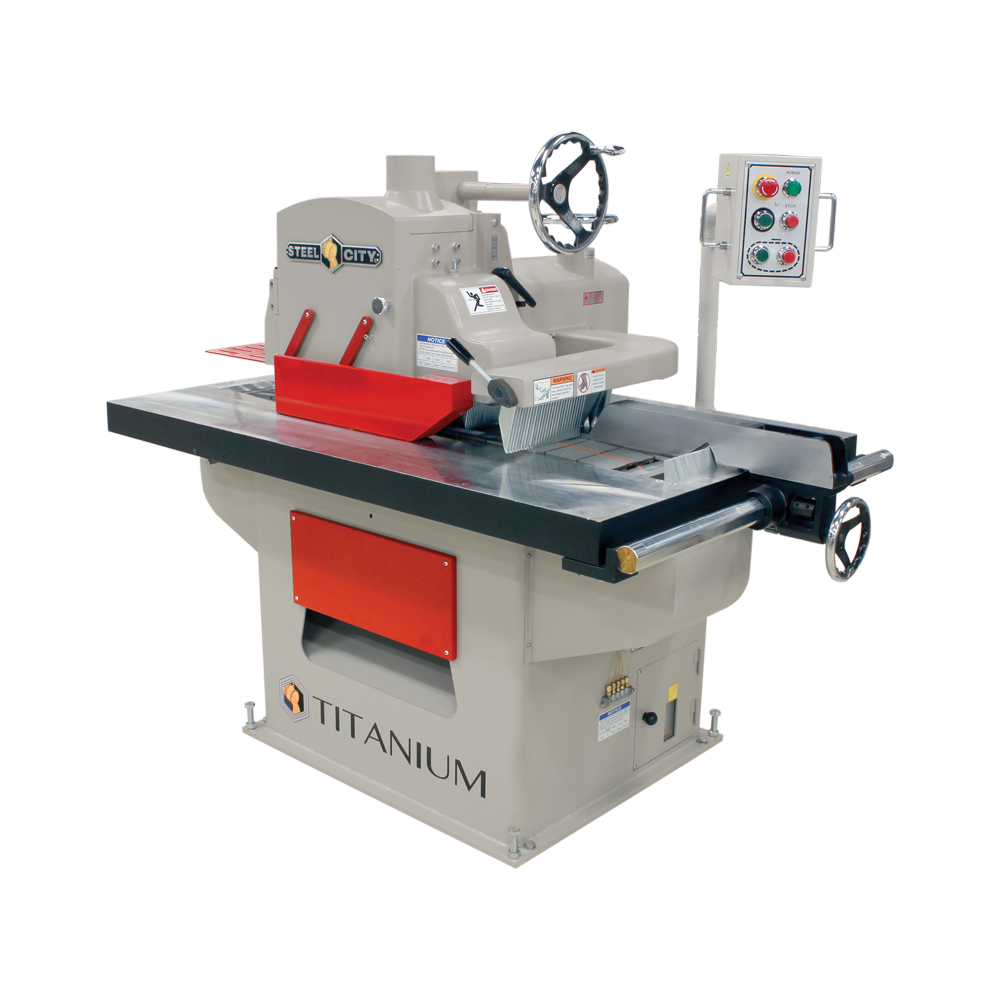

Rip Saw with Standard Fence 10-900 T4
Regular price
$0.00
Shipping calculated at checkout
SKU: 10-900T4
Characteristics
- Robust frame with a large cast iron table
- High quality cutting mechanism combined with a chain feed for straight and precise ripping.
- 6 adjustable pressure rollers for excellent workpiece hold down
- Automatic feed chain lubrication
- Heavy-duty cast iron precision rip fence with locking lever
- Swivel control panel for easy access
- Adjustable feed speed by dial
- 3 rows of anti-kickback fingers
- Emergency stop button at the exit of the saw
Technical Specifications
| Main motor |
15 HP - 600 V - 3 ph - 16,6 A |
| Feed Motor |
2 HP |
| Blade diameter |
12” ( 305mm ) |
| Blade arbor diameter |
1” |
| Blade rotation speed |
4500 RPM |
| Max rip thickness |
3-7/8” ( 100 mm ) |
| Min length of the piece |
8” ( 200 mm ) |
| Max rip capacity |
18” ( 460 mm ) |
| Feed speed |
49 to 98 ft/min / 13 to 30 m/min |
| Table dimensions |
36” x 57” ( 900 x 1450 mm ) |
| Dust extraction outlet |
1 x 4” (1 x 100 mm ) |
| Shipping weight |
2530 lb ( 1150 kg ) |
| Dimensions |
61” x 45” x 67” ( 1550 x 1130 x 1700 mm ) |
