Characteristics

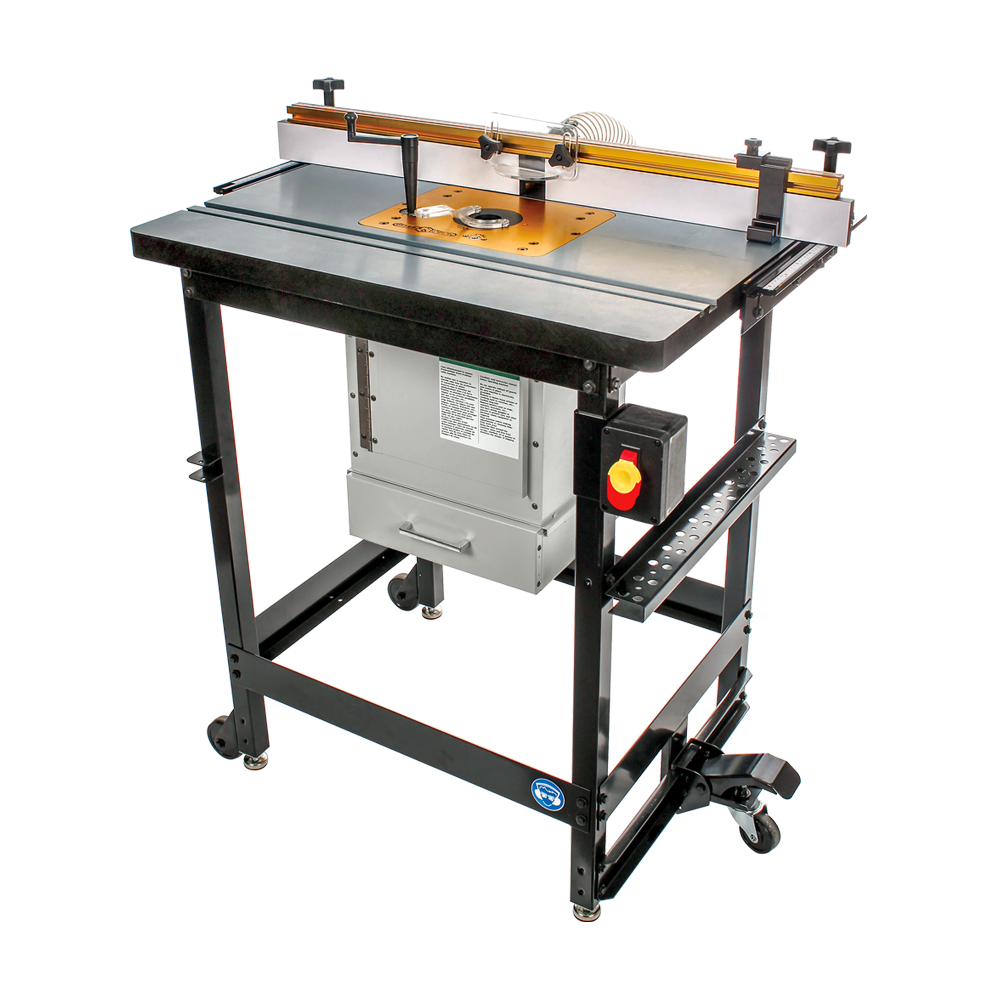

- Standard router lift offering precise execution and ease of use
- Sturdy cast iron table absorbing vibrations and providing greater stability

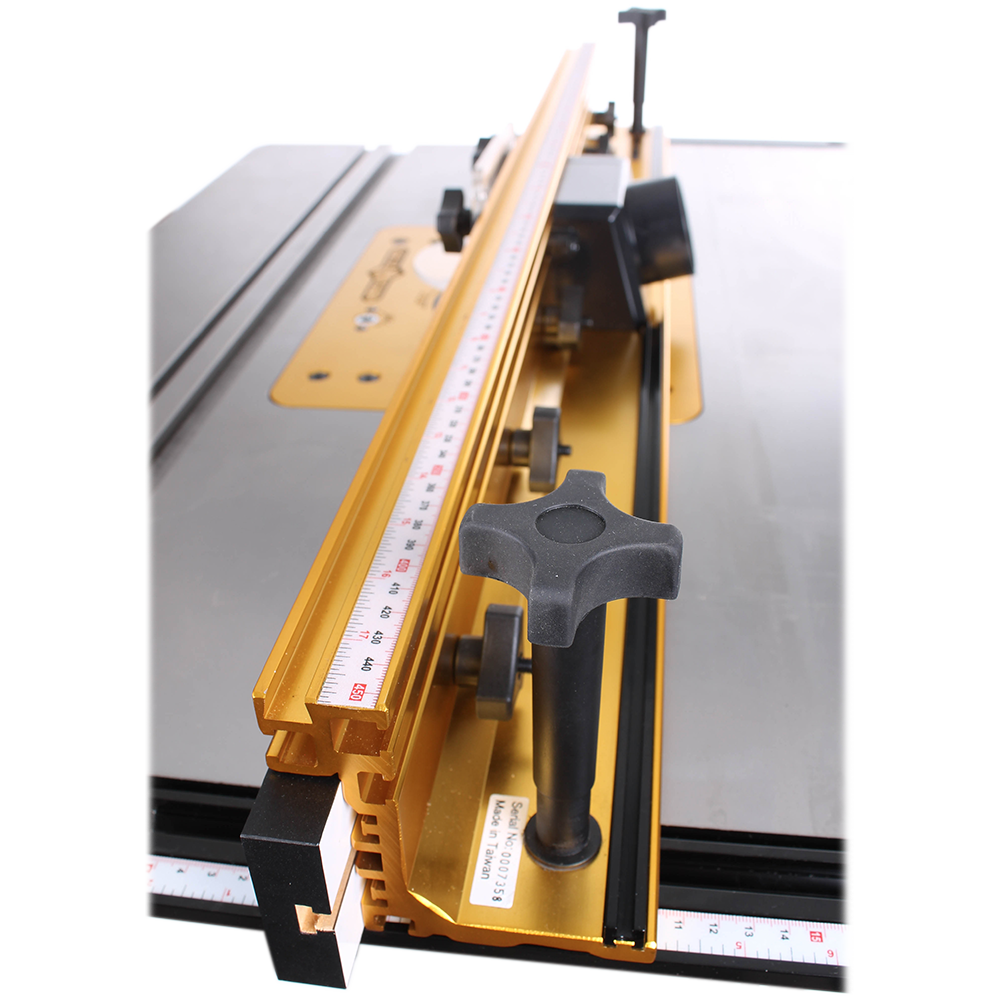

- 36” aluminum adjustable parallel guide with dust collection outlet and transparent guard

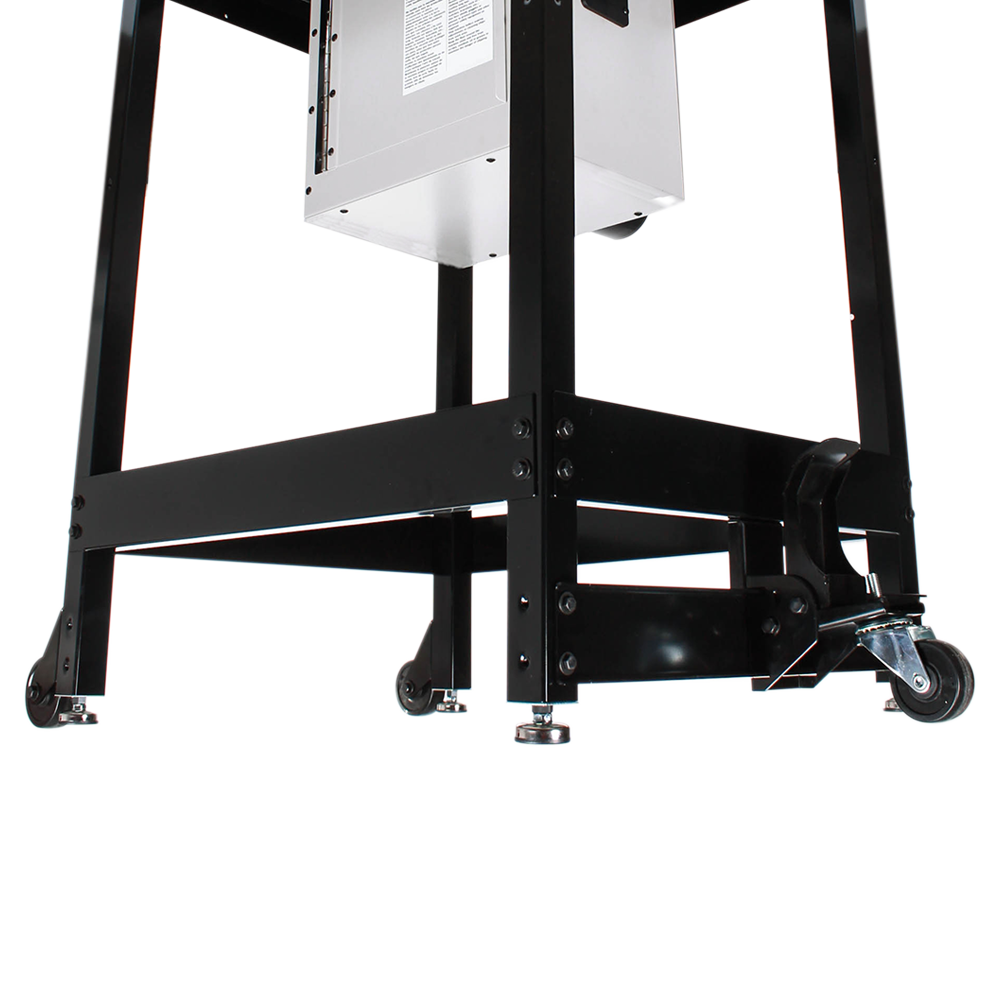

- Steel stand with mobility kit
- Flip stop, tool tray and utility drawer

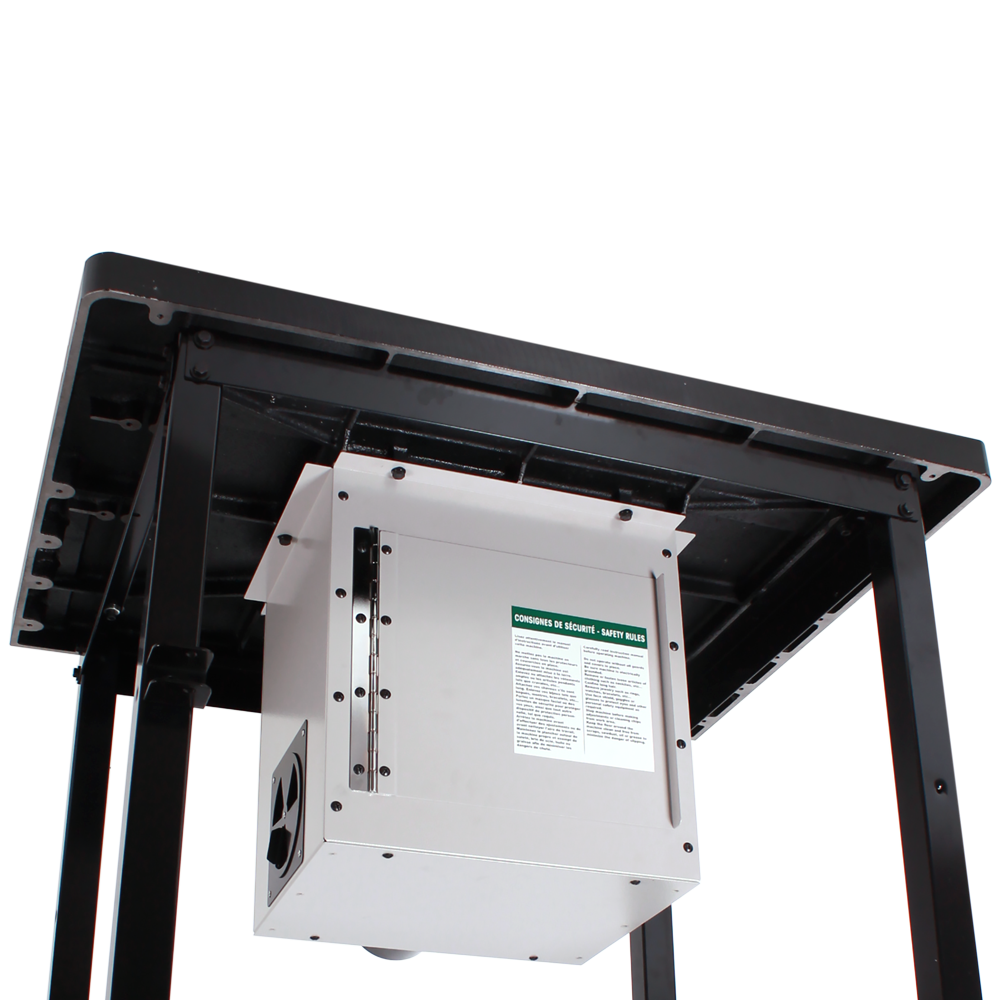

- Dust collection box connected to the 4” outlet on the guide.

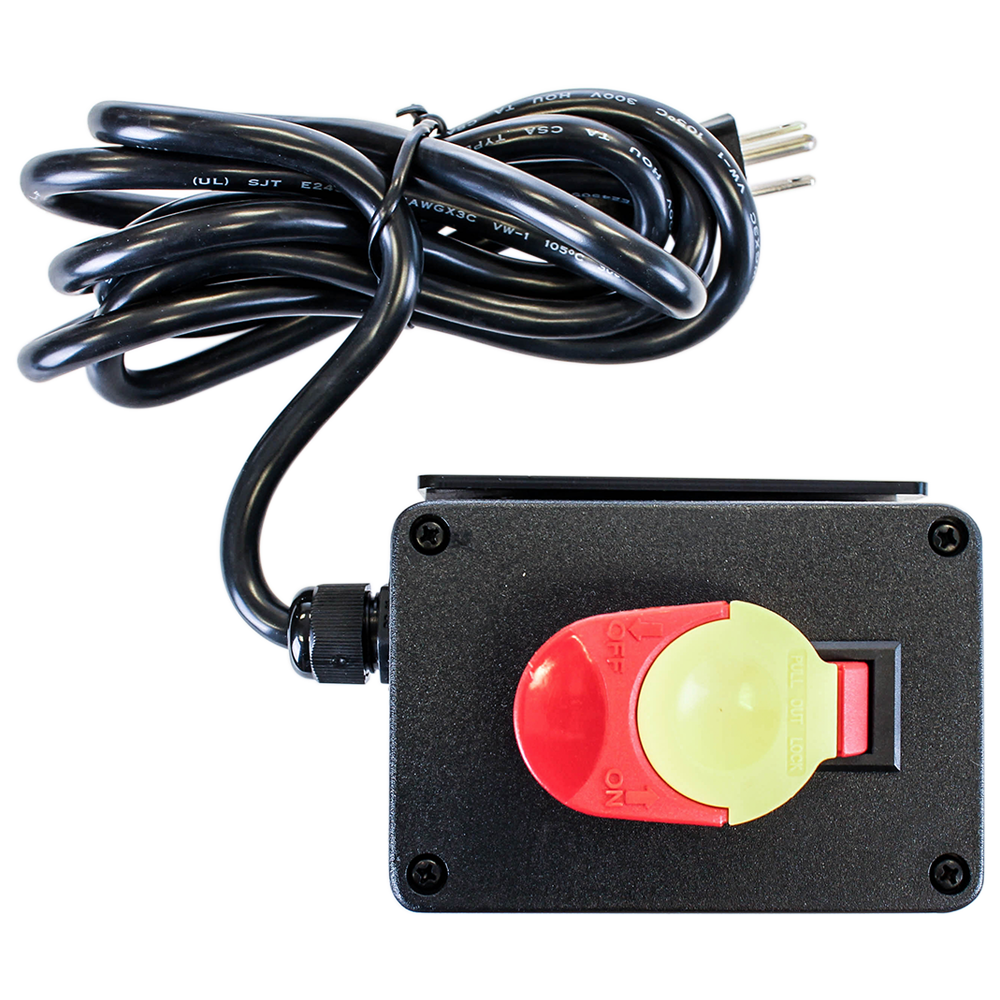

- Lockable switch
Technical Specifications
| Working height |
36-1/2" (927 mm) |

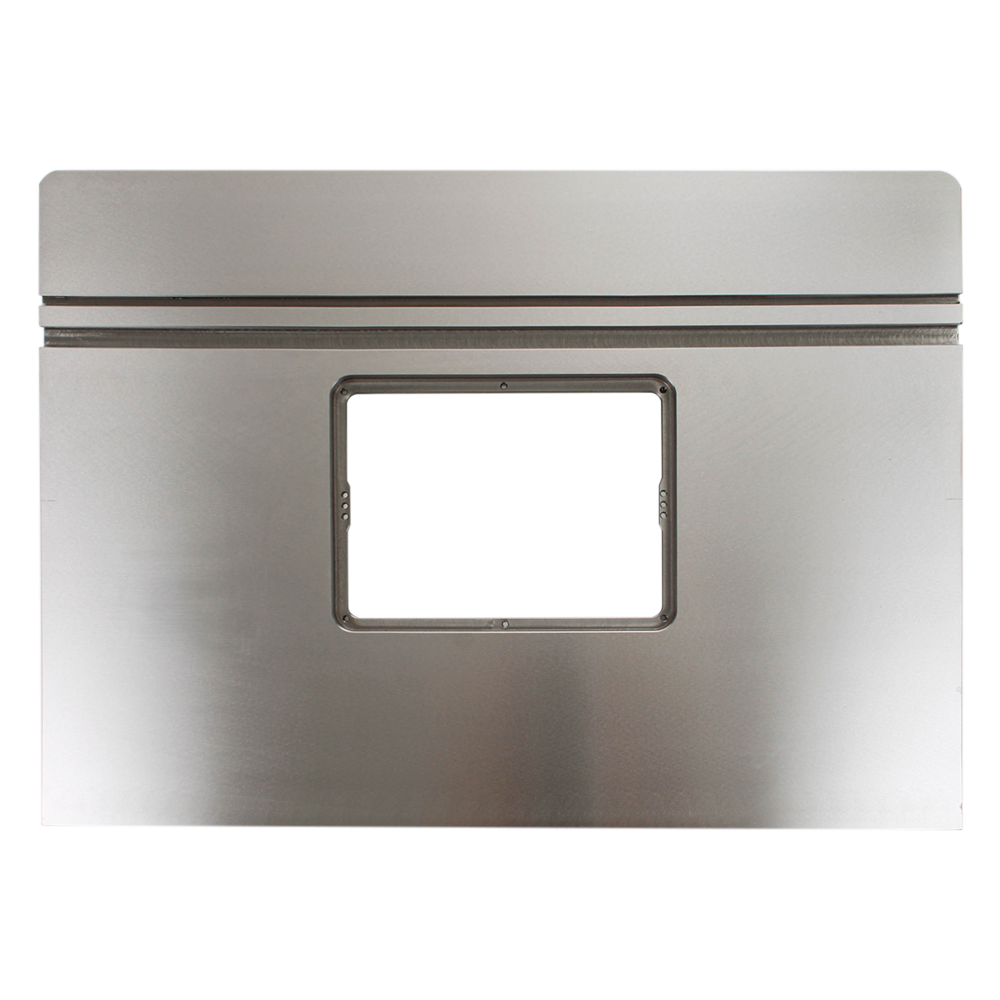

| 47-021 Cast iron table |
32" X 24" X 1-1/2" |

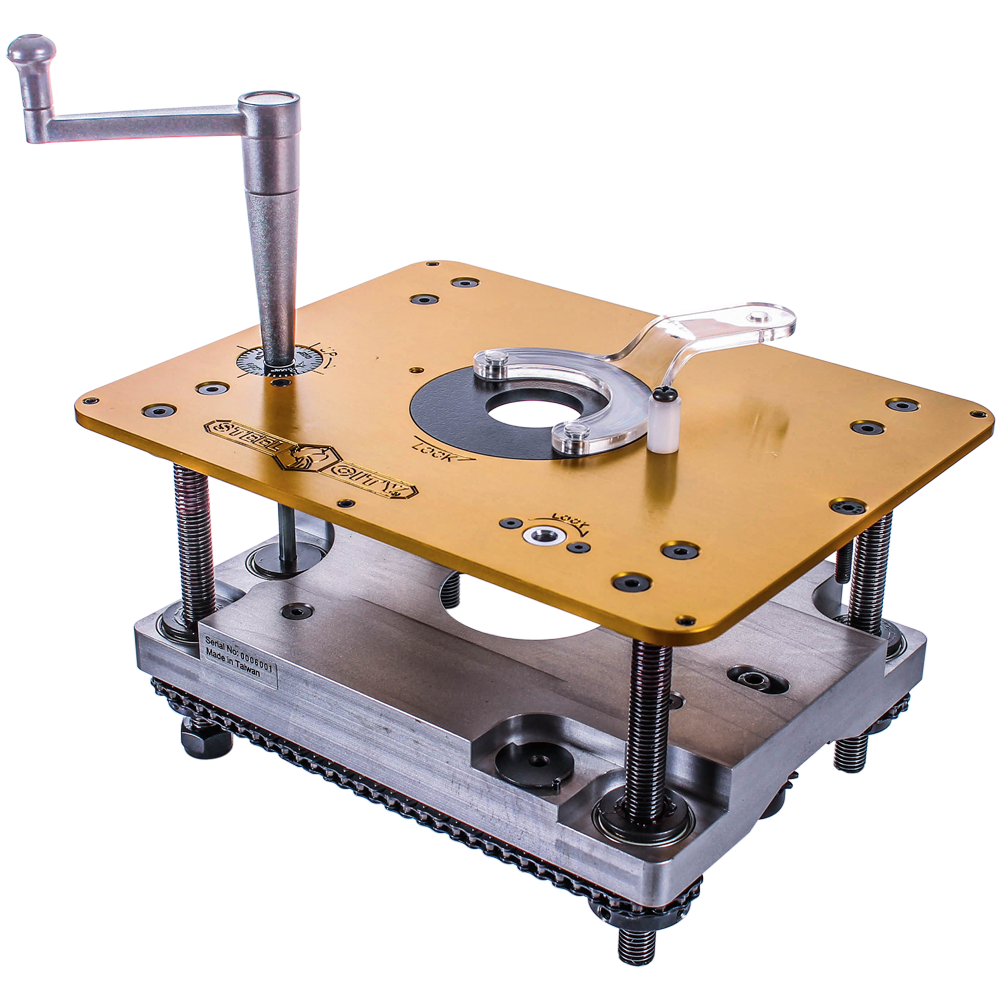

| 47-031 Router lift |
11-3/4" X 9-1/4" |
| 47-037 Insert plates |
Set of 4 |
| 47-041 Parallel guide |
36" X 3-5/8" |
| 47-044 Flip stop |
1 |

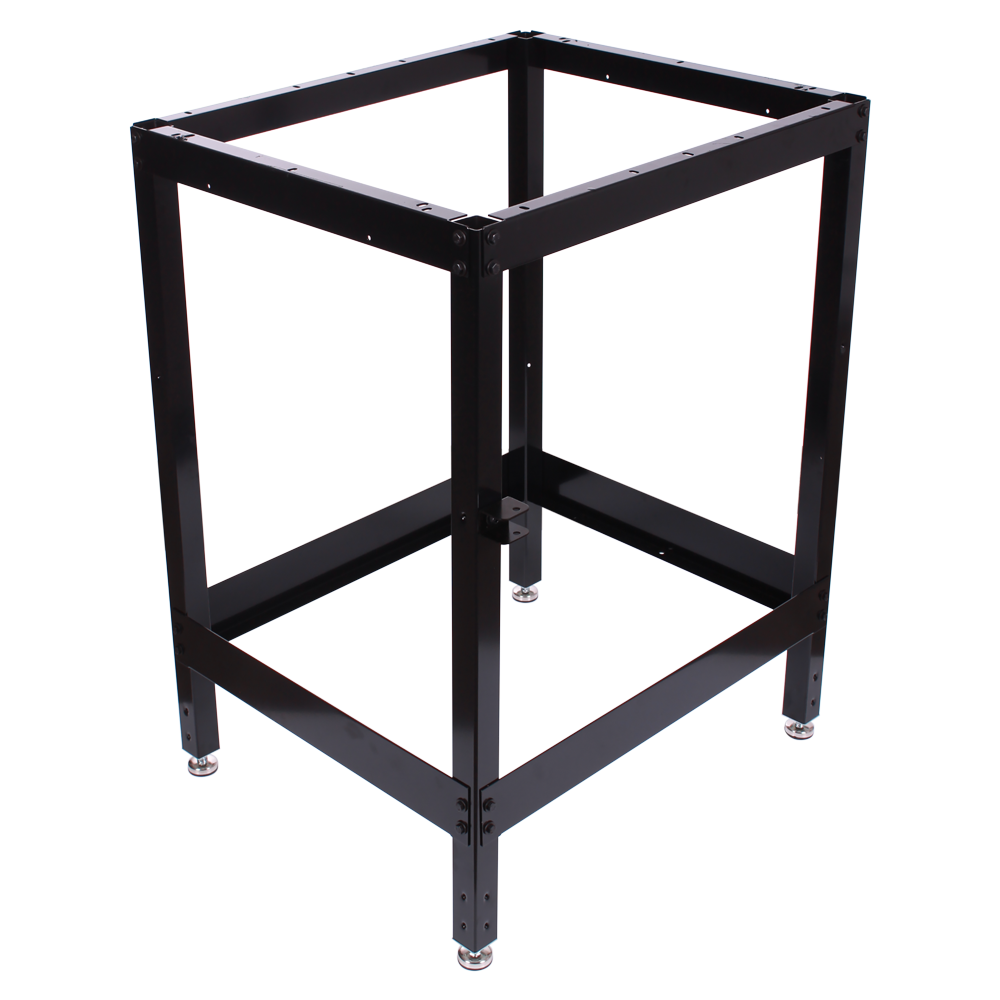

| 47-061 Steel stand |
35" X 26" X 22" ( 880 X 663 X 563 mm ) |
| 47-063 Mobile base |
Wheels Ø 3" |
| 47-064 Tray |
1 |
| 47-071 Dust collection box |
13" X 10-1/8" X 13-3/4" ( 330 X 258 X 350 mm) |
| 47-081 Utility drawer |
13" X 10-3/4" X 4-1/8" ( 330 X 273 X 105 mm ) |
