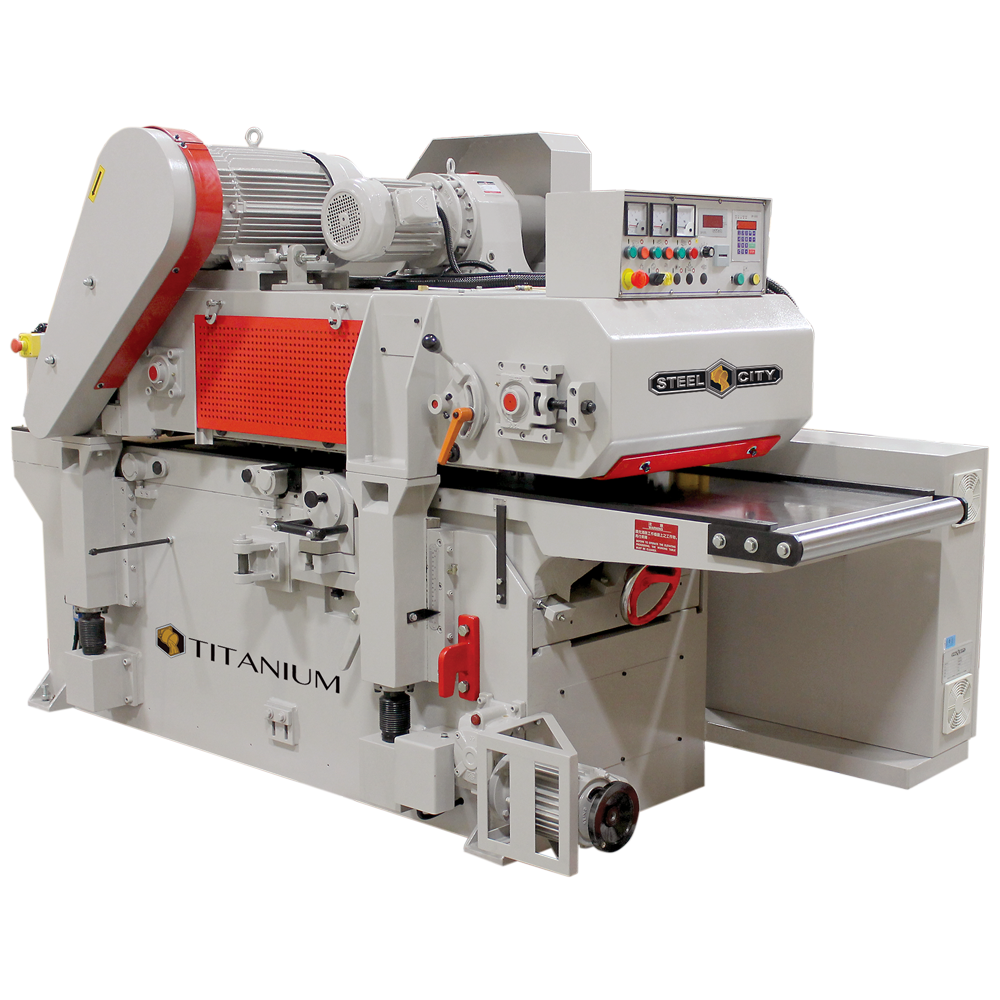

24" Two-Sided Planer (Strato) 35-710 T4
Regular price
$0.00
Shipping calculated at checkout
SKU: 35-710T4
Characteristics

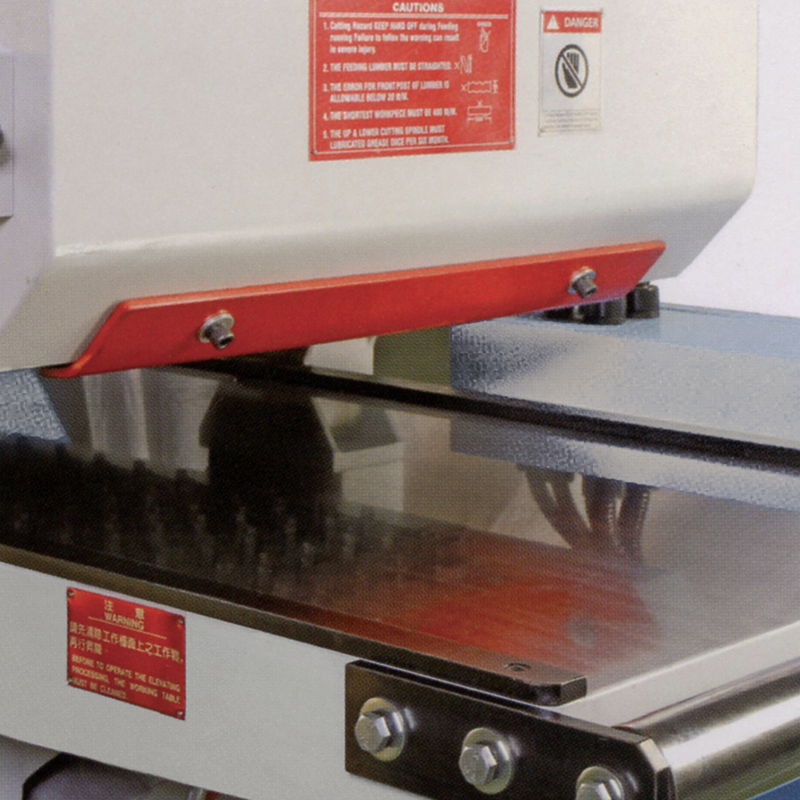

- Table surface is hard chrome plated and precision ground for maximum wear resistance

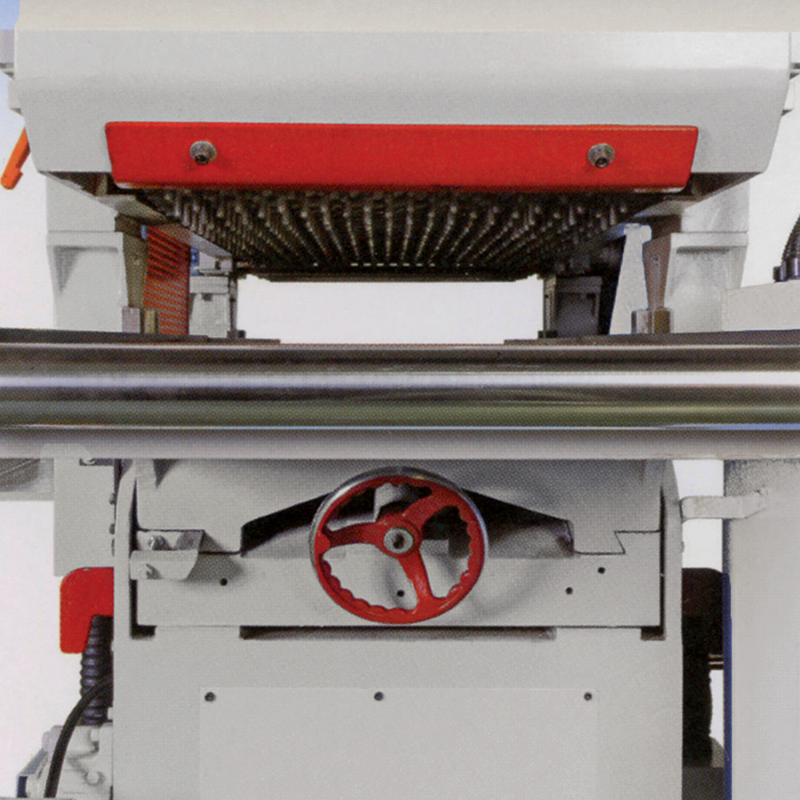

- Positive feeding by spike conveyor
- Feeding conveyor is driven by chain.

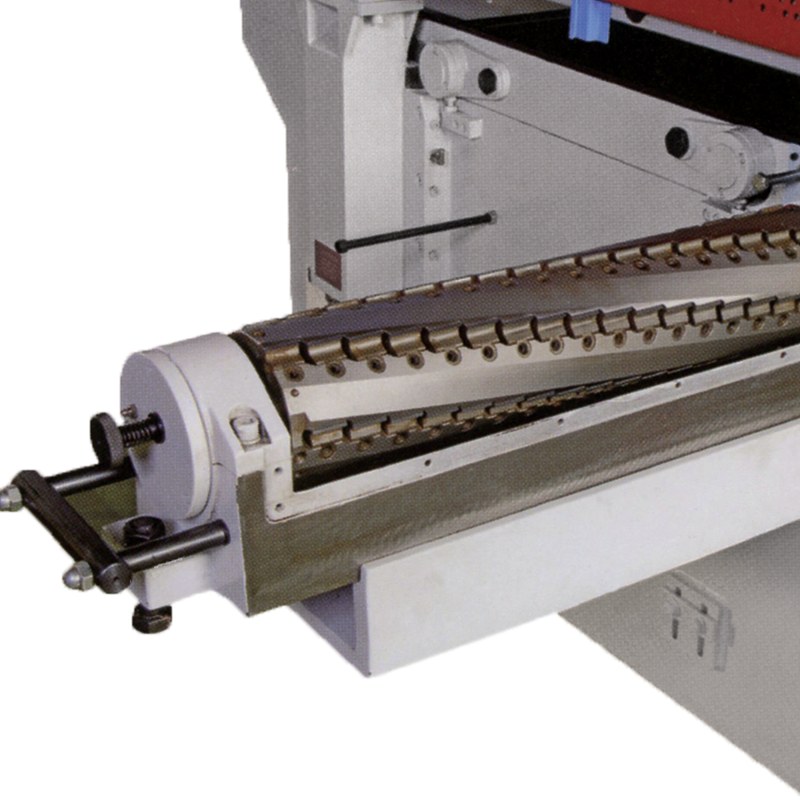

- Spiral cutter heads (upper and lower) with six rows of 30 x 12 x 2,5 mm carbide inserts, diam. 135 mm
- Controller DP-525 for precision adjustments
- Elevation system of the top conveyor by elevating screws and dovetails
- Ampere meter on top, bottom and feed drive motors

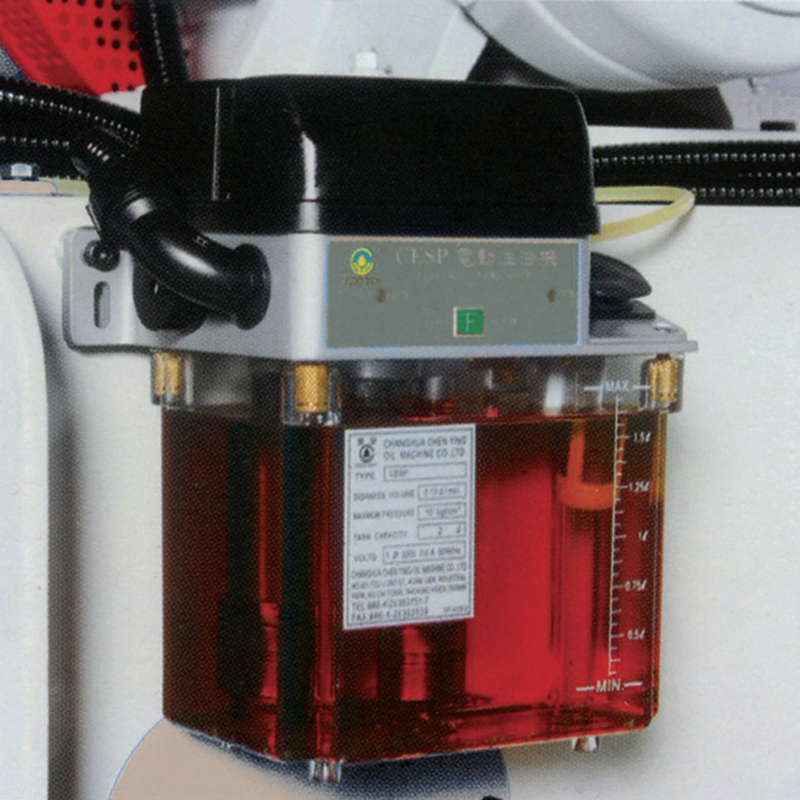

- Automatic lubrication system
- Two top and one bottom 120 mm dust outlets
Technical Specifications
| Motor Power |
50 A |
| upper cutter head |
20 HP - 600 V - 3ph - 4 poles |
| lower cutter head |
20HP - 600 V - 3ph - 4 poles |
| feed drive |
3 HP |
| elevation drive |
1 HP |
| Maximum width |
610 mm ( 24" ) |
| maximum thickness |
160 mm ( 6-1/4" ) |
| Minium thickness |
6 mm ( 1/4" ) |
| Minimum length |
300 mm ( 12" ) |
| Cutter head speed |
5000 RPM |
| Feeding speed |
20-65 ft/min. ( 6-20 m/min ) |
| Machine dimensions |
107" x 43" x 67" ( 2730 x 1100 x 1700 mm ) |
| Weight |
8140 lb ( 3700 kg ) |
