Characteristics

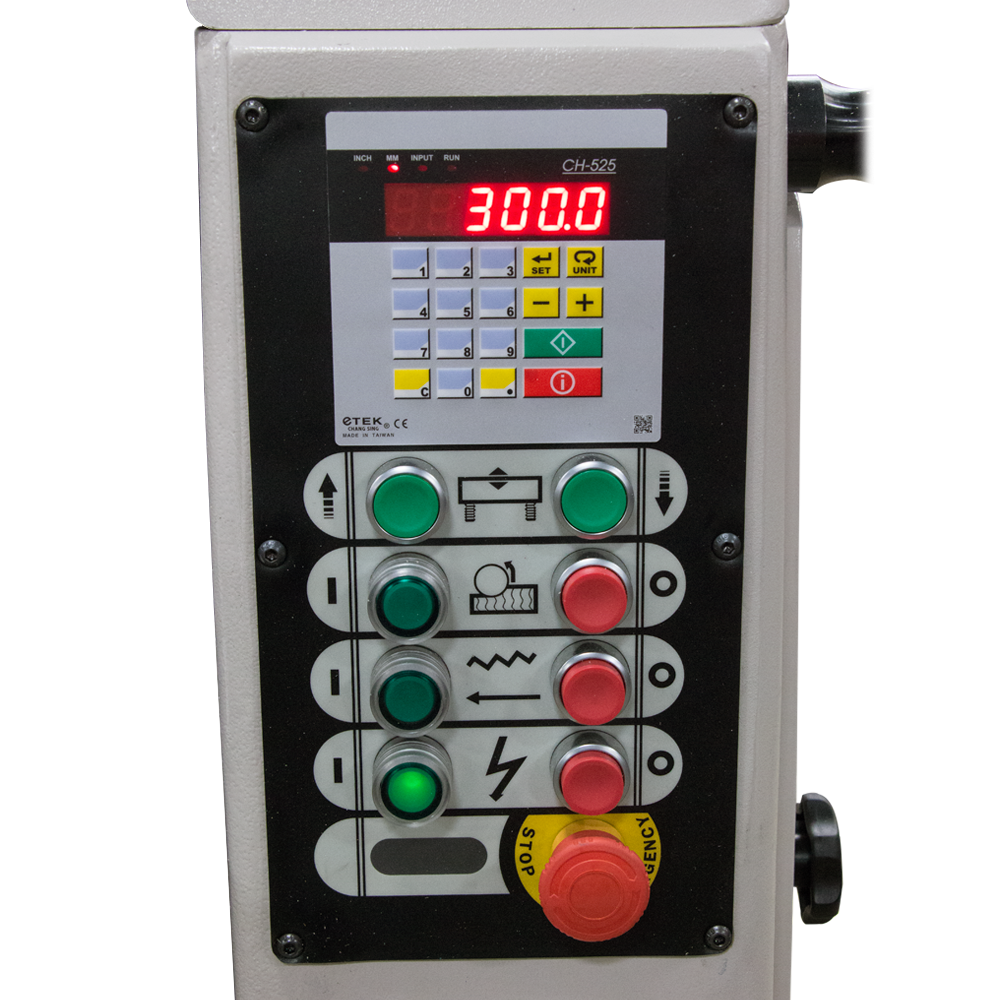

- Control panel, metric or imperial units
- Set of anti-kickback fingers
- Notched feeder rollers

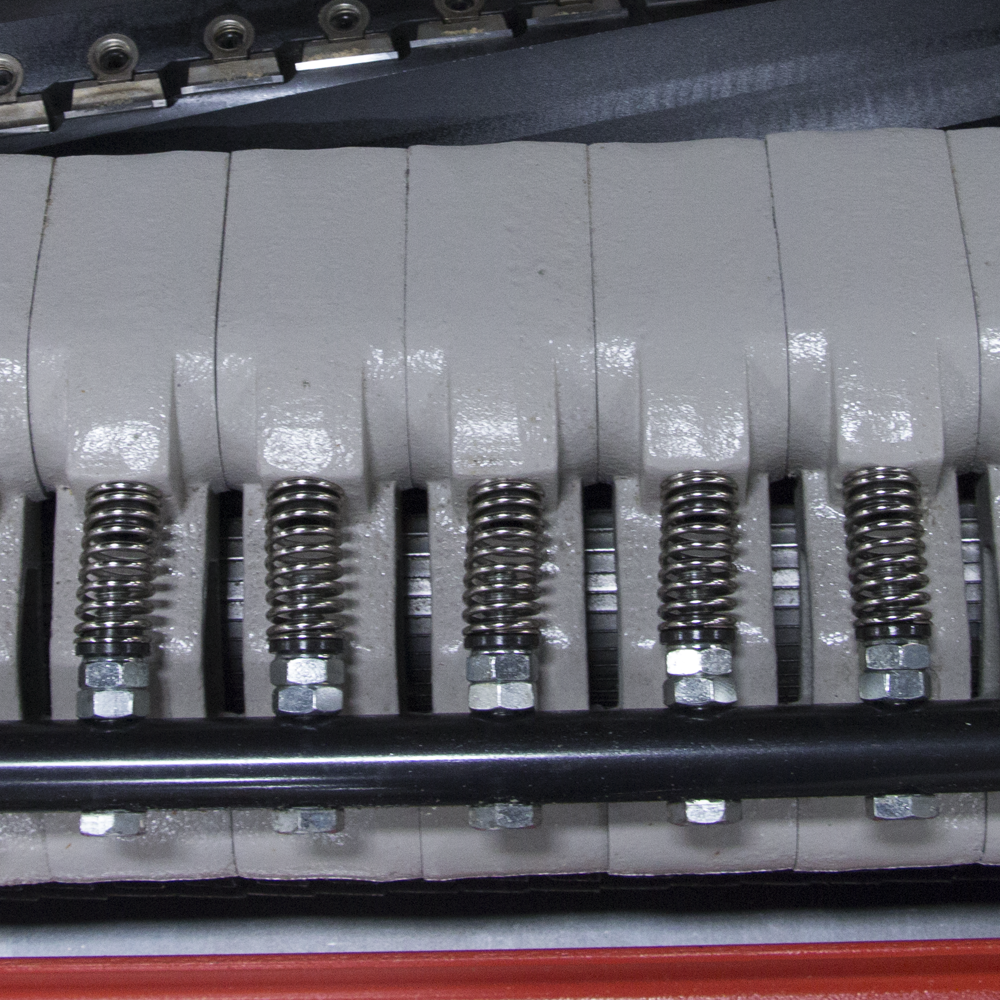

- Segmented pressure shoes / chip breakers

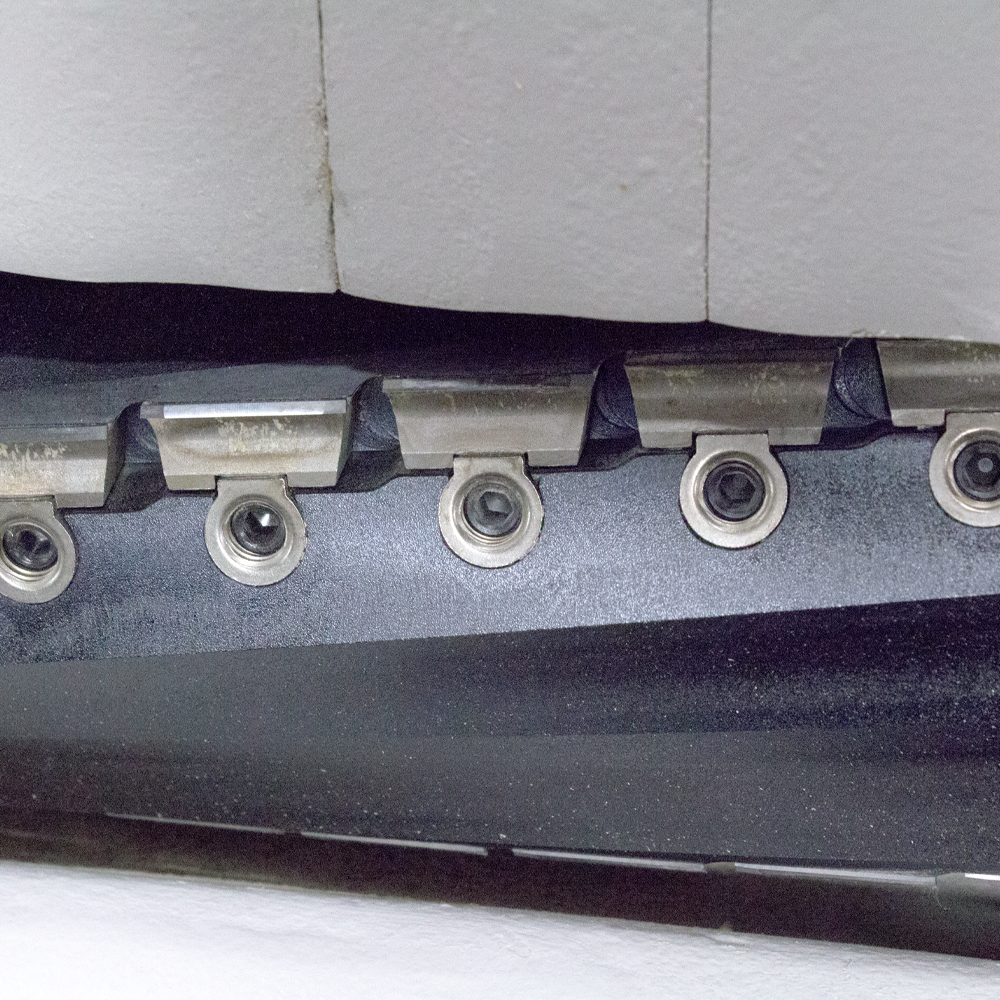

- Helical cutterhead - 4 rows of carbide knives
- Smooth exit rollers

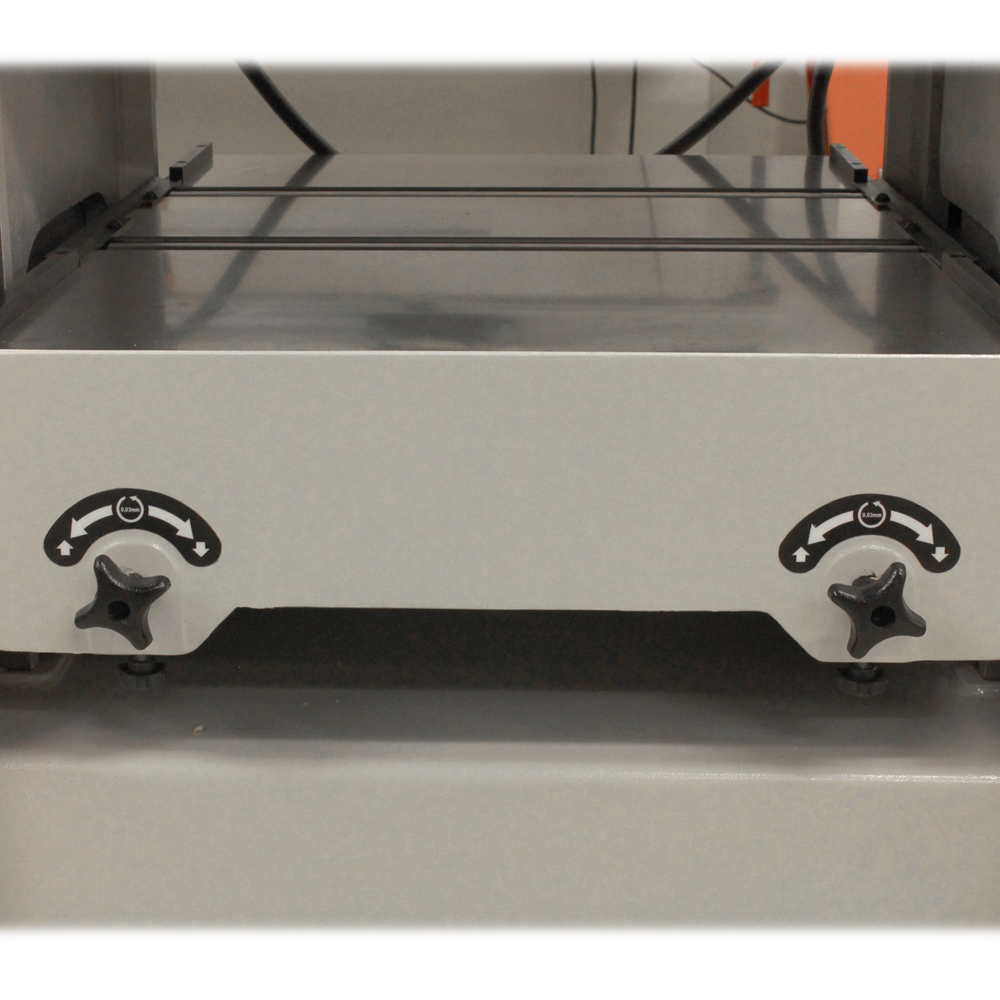

- Table rollers adjustment with two knobs
Technical Specifications
| Motor |
15 ch - 600 V - 3 ph - 18,1 A |
| Table adjustment Motor |
1/2 HP |
| Feed Motor |
2 HP |
| Feed Motor |
24” ( 609 mm ) |
| Max width |
12” ( 304 mm ) |
| Max thickness |
5/32” ( 4 mm ) |
| Min part length |
10 5/16” ( 262 mm ) |
| Feed rate |
20-92 ft/min / 6-28 m/min |
| Dust collection outlet |
1 x 6” |
| Shipping weight |
1980 lb ( 898 kg ) |
