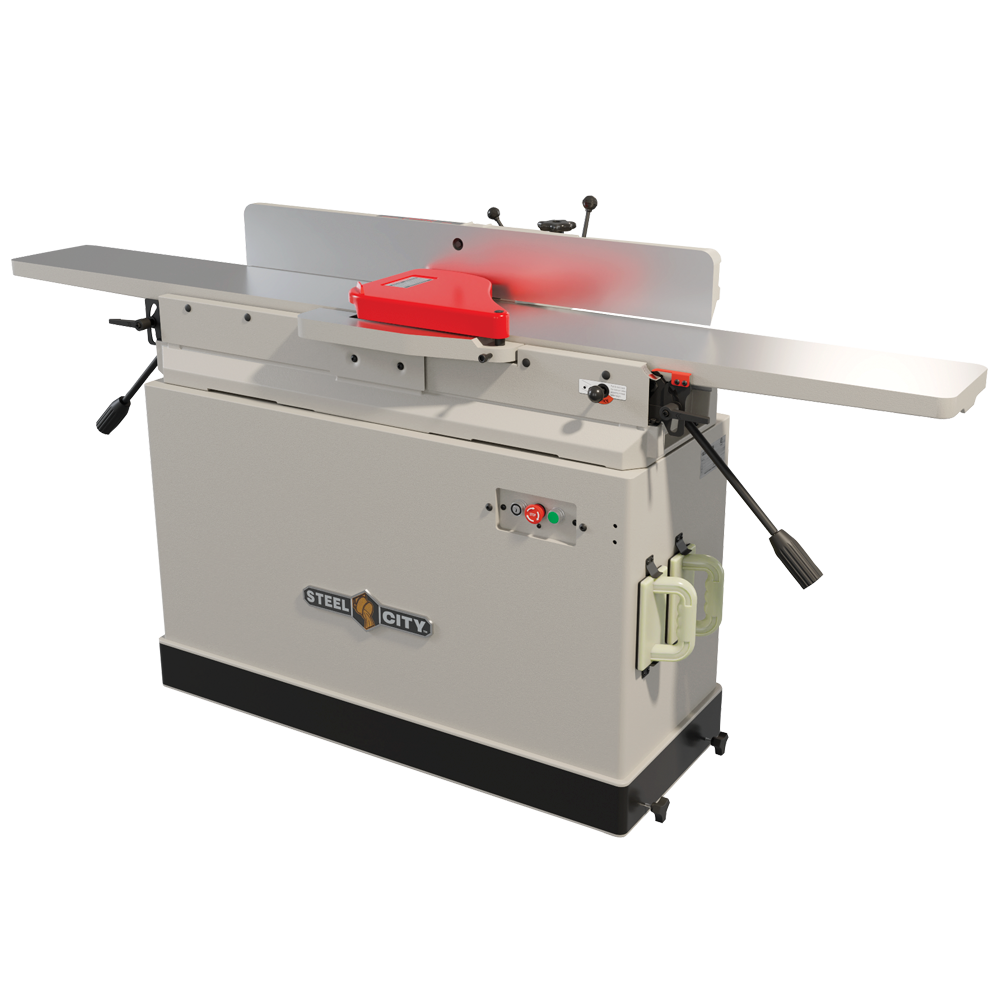

8" Parallelogram Jointer 30-310H S3
Regular price
$3,699.99
Shipping calculated at checkout
SKU: 30-310HS3
Characteristics
- Extra long 75-3/4" cast iron tables
- Cast iron machine body to eliminate vibrations
- Solid steel integrated mobile base
- Cast iron fence with 3 angle stops -45°, 0°, 45°
- 1/2” rabbeting capacity
- Lockable magnetic switch
- Long table adjustement lever with stock removal indicator
- 1/8” depth cut stop
- Large cutter head guard
- ''PERFORM'' helical cutterhead with carbide inserts
Technical Specifications
| Motor |
2 ch - 220 V - 1 ph - 8 A |
| Max capacity |
8” x 1/2” ( 203 x 12 mm ) |
| Cutter head |
24-2 sided replaceable cutterhead knives |
| Rotation |
5500 RPM |
| Table dimensions |
9-1/4” x 75-3/4” ( 235 x 1924 mm ) |
| Working height |
32-5/8” ( 829 mm ) |
| Dust collection outlet |
Ø 4” ( 101 mm ) |
| Shipping weight |
579 lb ( 263 kg ) |
