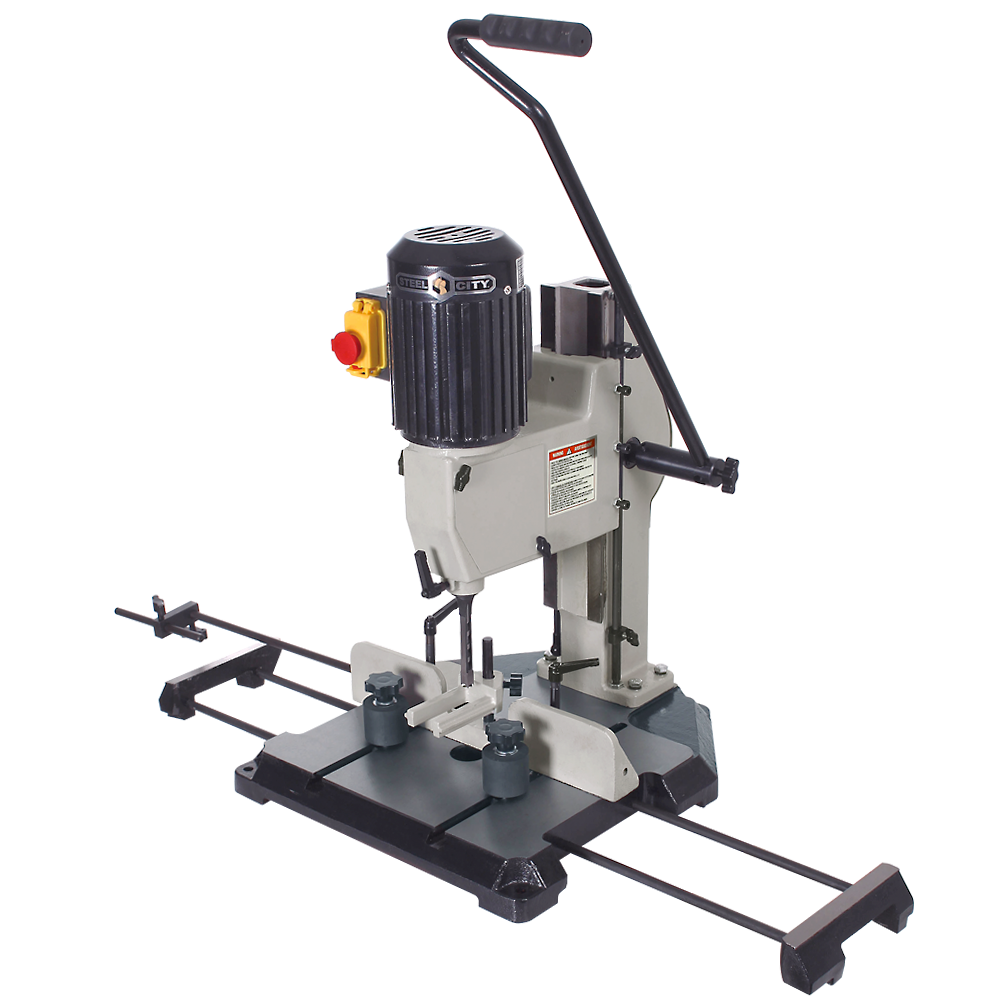

5/8" Bench Top Mortiser 40-510 S1
Regular price
$599.99
Shipping calculated at checkout
SKU: 40-510S1
Characteristics
- Head, column, table and fence are massive cast-iron made for better vibration absorption
- Its base, which also serves as a table, measures 15-3/4"(40cm) wide x 17"(43cm) deep which gives the machine maximum stability
- The column has built-in dovetail slides that allow the head to slide with precision
- Moving the head is done using a long ambidextrous "L" lever with rubberized handle (left or right position)

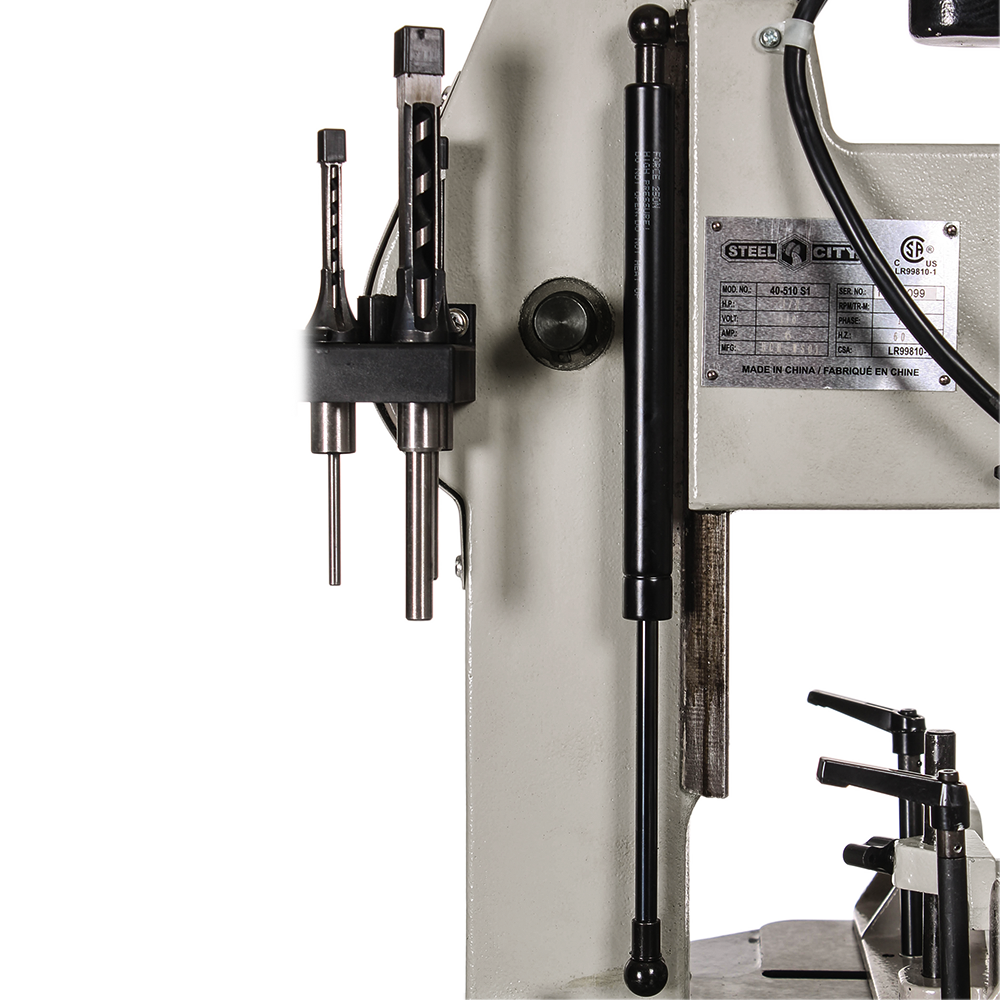

- Robust rack-and-pinion gear drive along with damper cylinder ensure soft and controlled descent

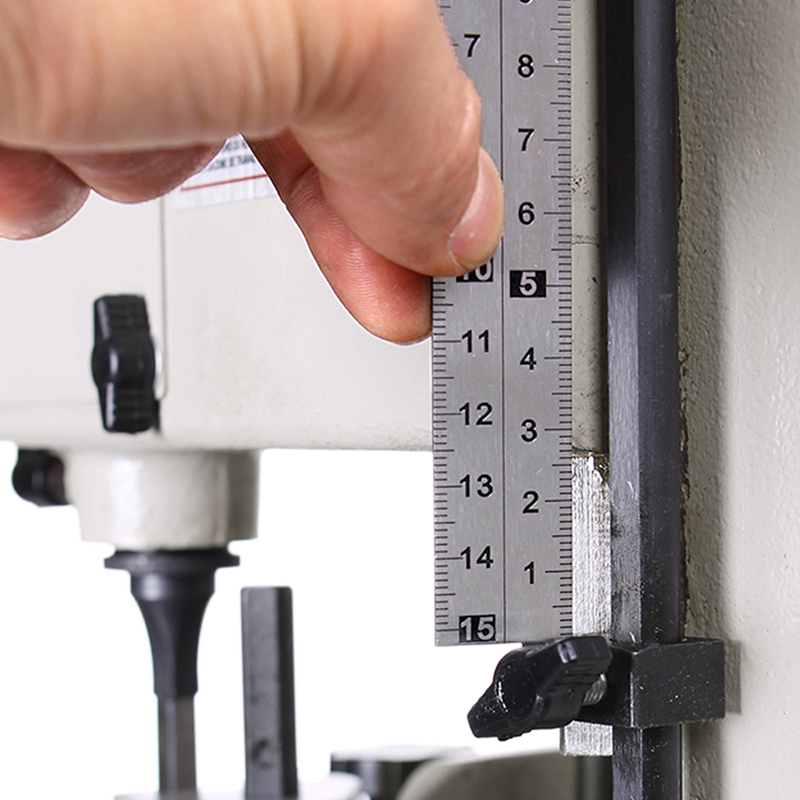

- 2 stops allow you to adjust the plunge depth from 0 to 5"(130mm) deep
- The head has a 1/2"(13mm) capacity chuck which turns 1720 RPM

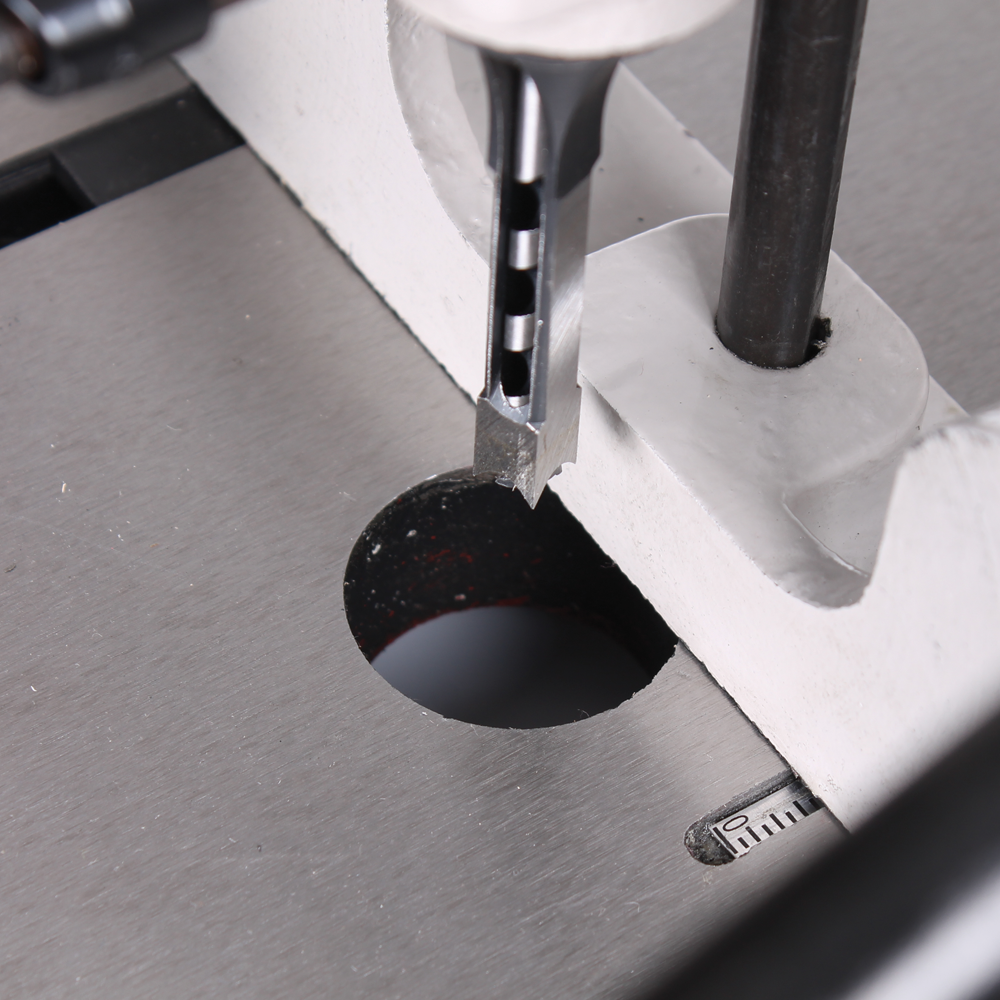

- Chisels are very easy to secure. 2 bushings to adapt 5/8" and 3/4" chisel shanks are included

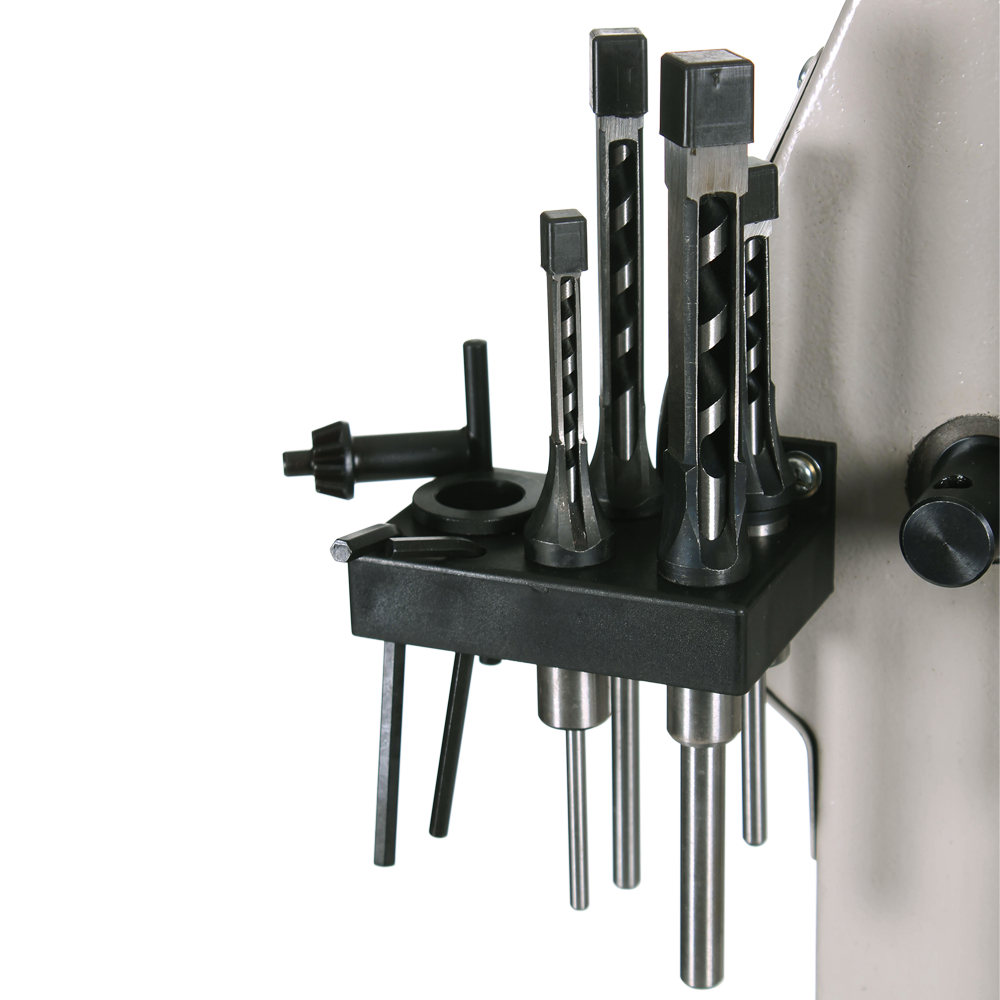

- Machine comes with 4 chisel + bit sets for 1/4", 5/16", 3/8", 1/2" squares and a tool rack

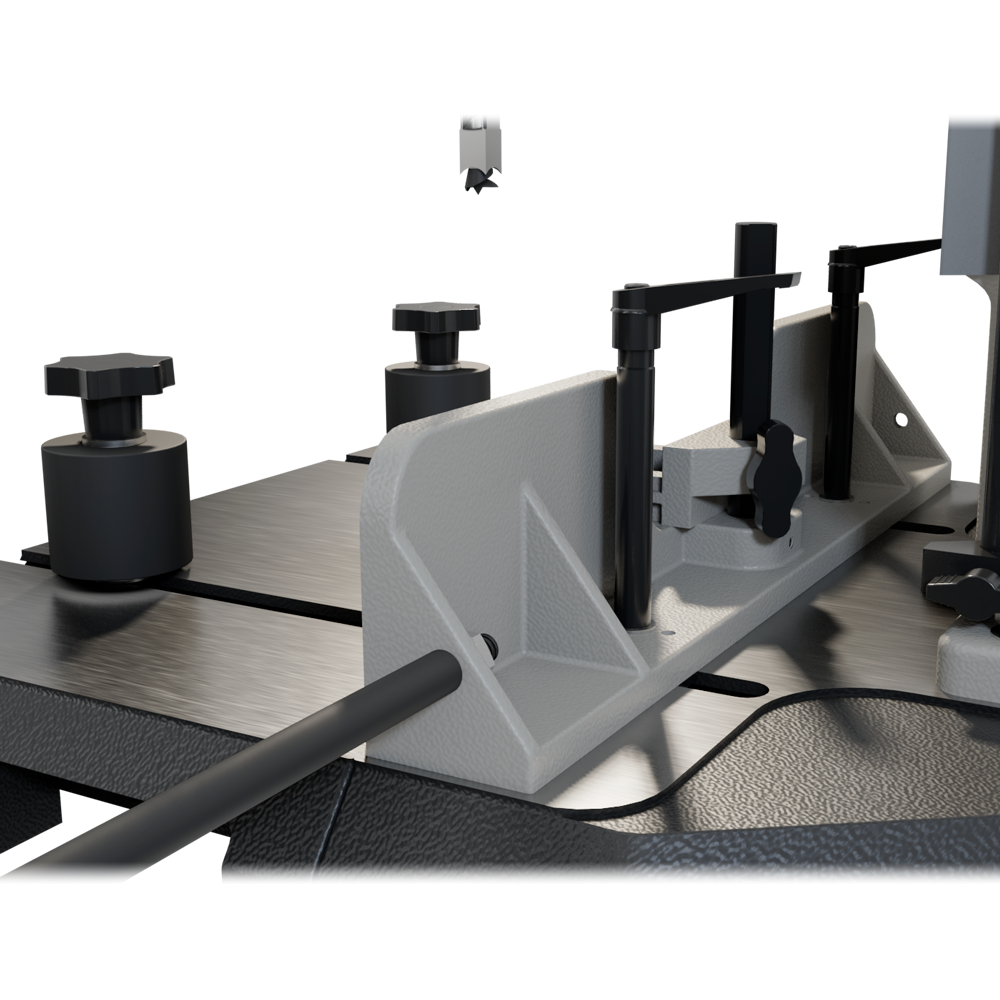

- The table is equipped with a sliding fence with a 4"(100mm) built-in scale

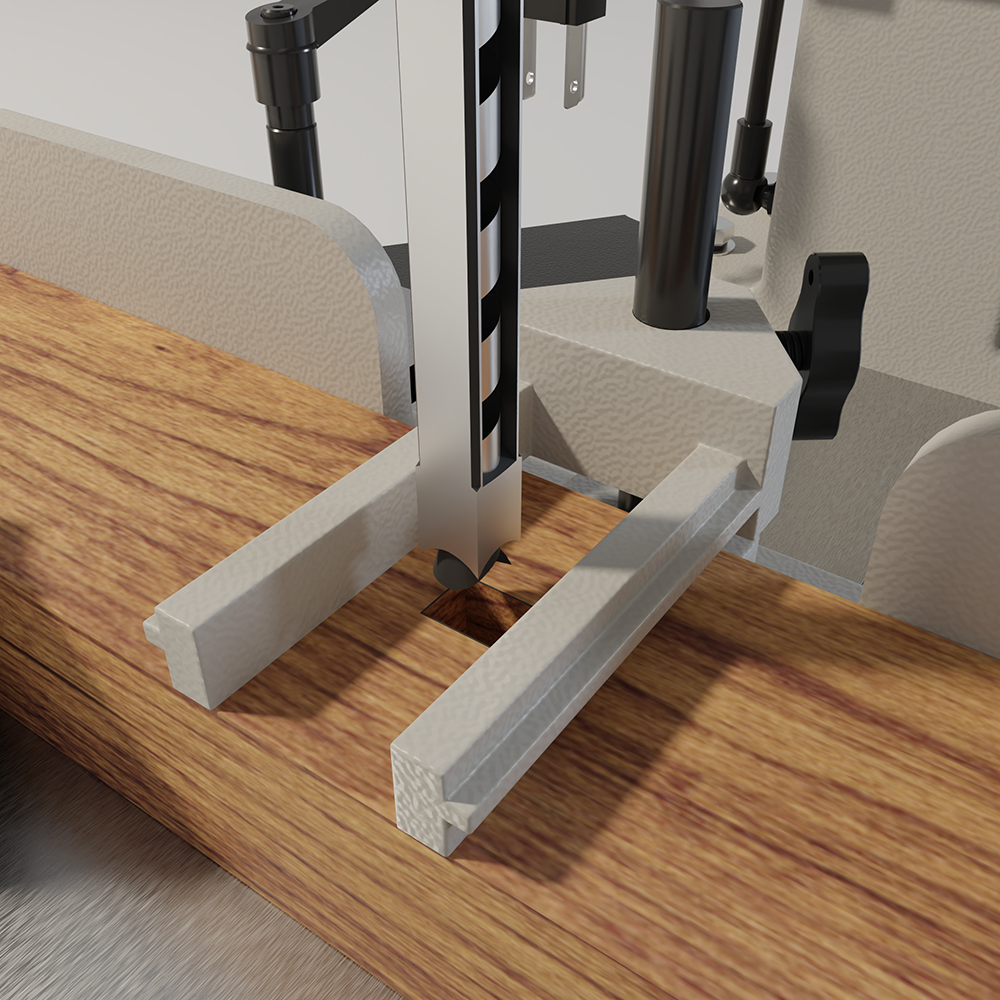

- An easy to adjust sliding hold-down from 0 to 4"(100mm) is attached to the fence in order to prevent the workpiece from lifting off the table as the chisel withdraw from the hole

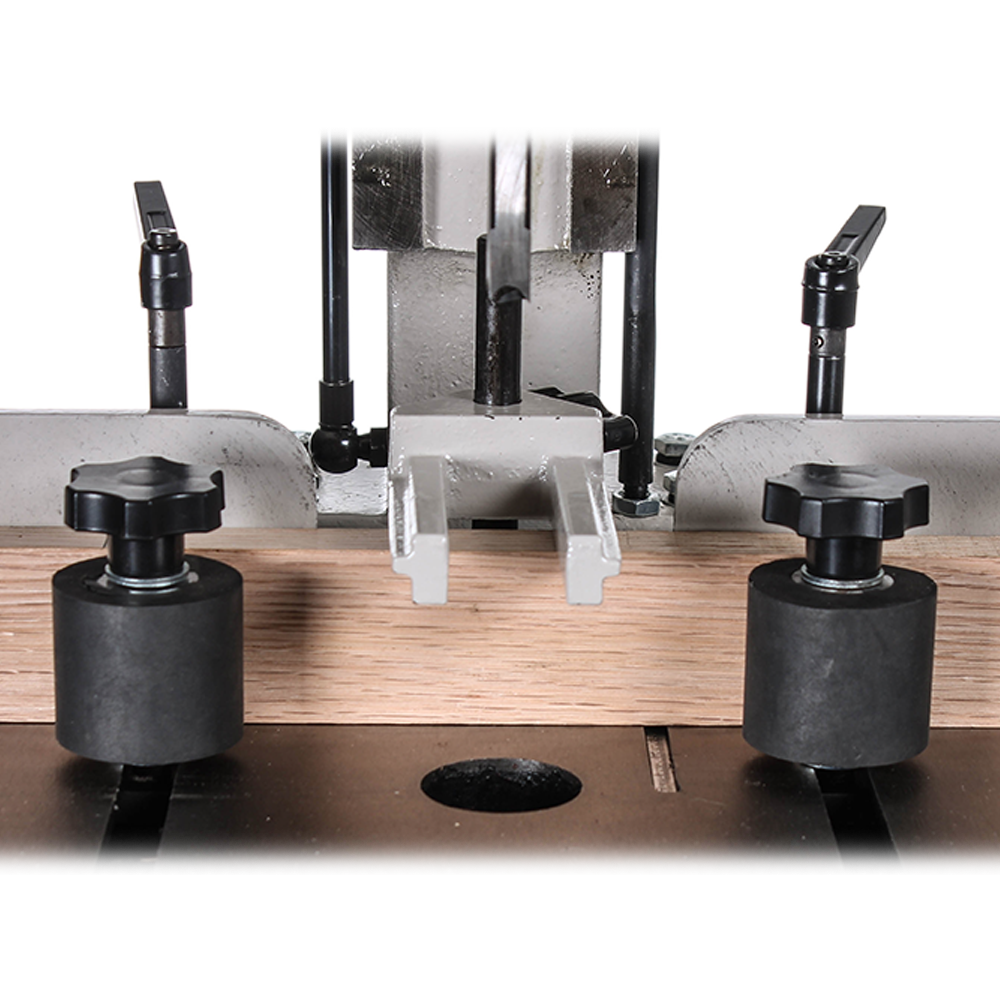

- 2 adjustable non marring rubber pressure rollers allow to press and hold the workpiece against the fence

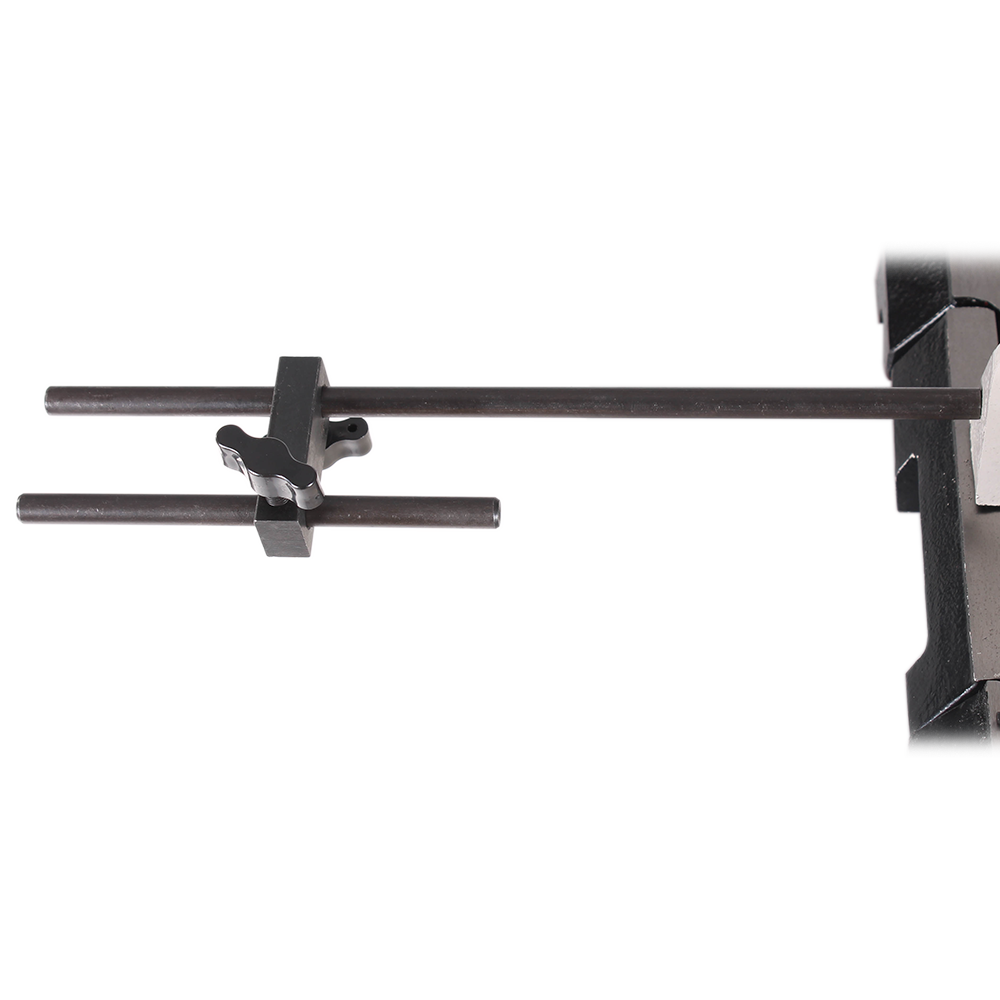

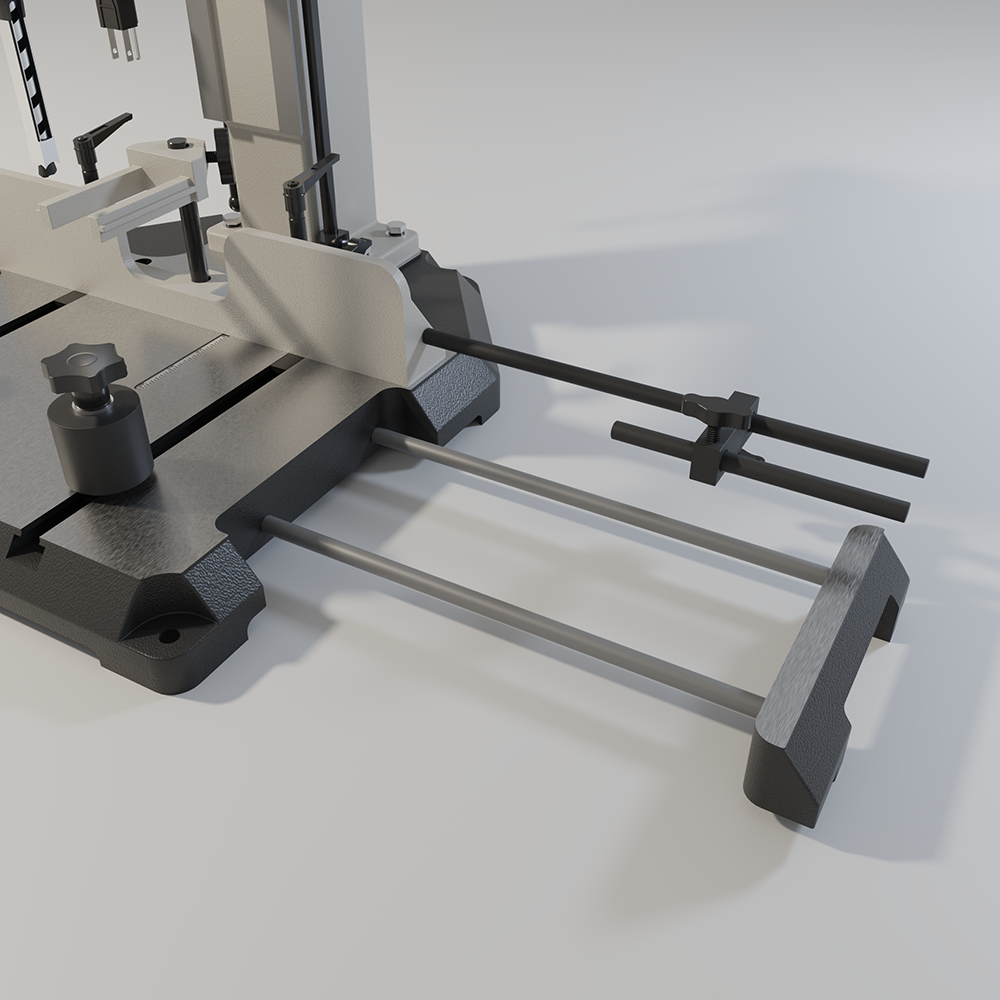

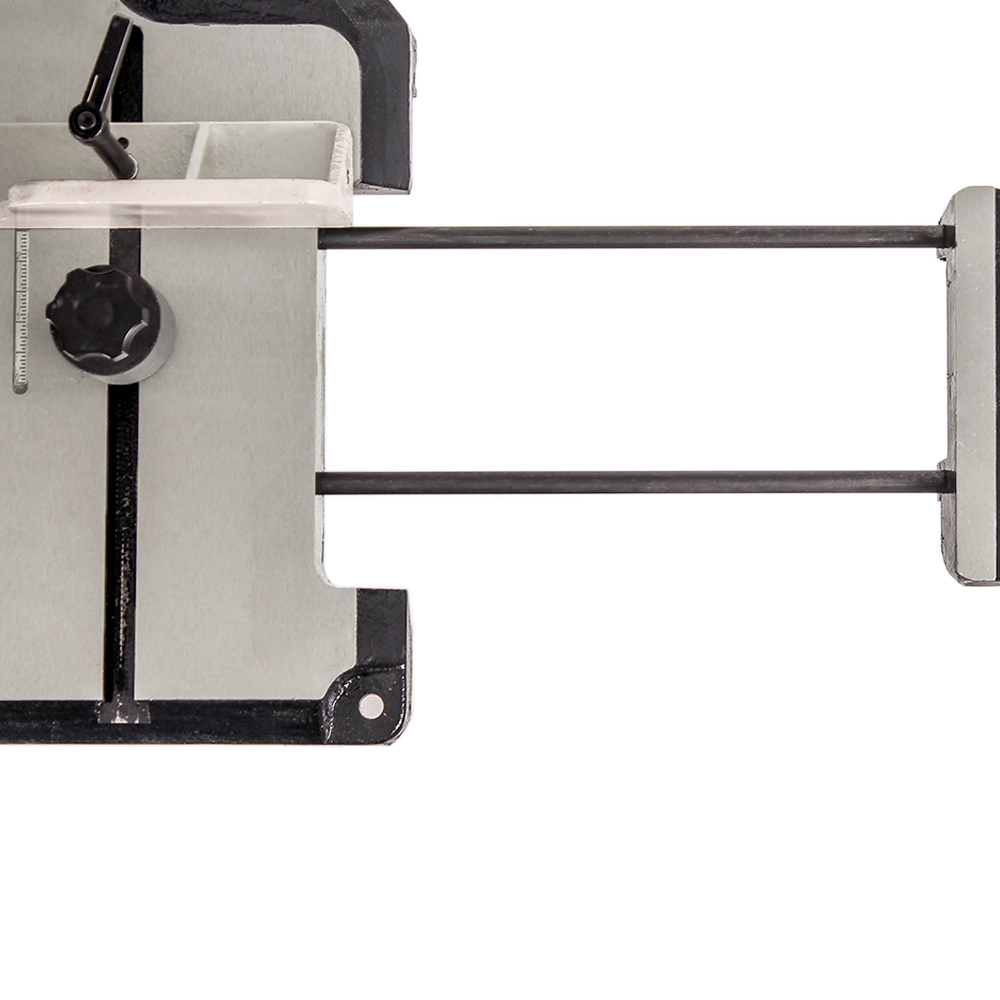

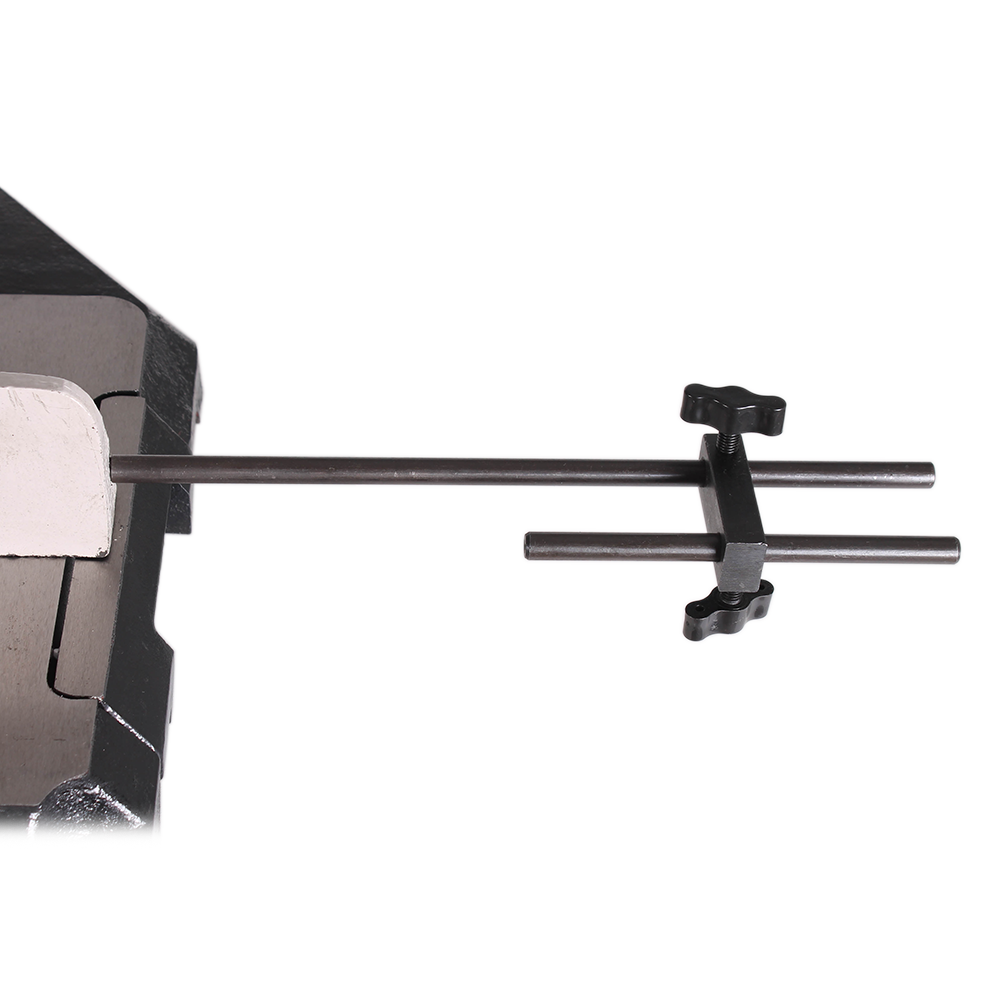

- Also included: 2 telescopic table extensions which offers 35" (89cm) long bearing capacity and one adjustable stop (12"-30cm) that can be installed to the right or to the left
Technical Specification
| Motor |
1/2 HP - 110V - 1ph |
| Chuck |
1/2" |
| Speed |
1720 RPM |
| Chisel Capacities |
1/4" to 3/4" |
| Adaptor Bushings (2) |
5/8" and 3/4" |
| Base Dimensions |
15-3/4" X 17" ( 400 mm X 432 mm ) |
| Table dimensions |
14-1/4" X 9-1/2" ( 362 X 241 mm) |
| Fence Dimension |
3" X 14" ( 75 X 350 mm) |
| Shipping weight |
110 lb ( 50 kg ) |
