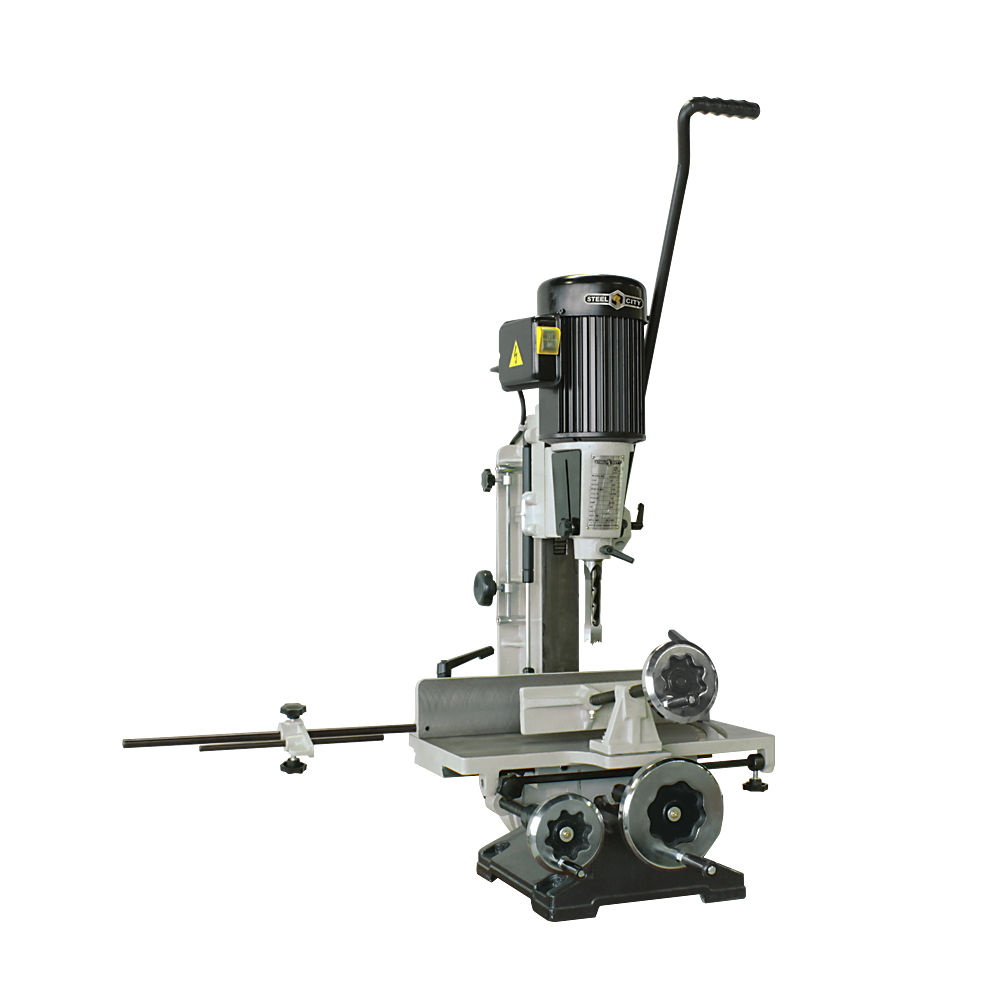

1" Bench Top Mortiser with Tilting Head 40-550 S1
Regular price
$1,999.99
Shipping calculated at checkout
SKU: 40-550S1
Characteristics
- Cast iron frame: table, guide, column and head
- Reducer sleeves for use with 5⁄8” and 3⁄4” shank chisels
- Capacity of chisels from 1⁄4” to 1”
- Maximum clearance of 10 3⁄16” with 1⁄4” chisel
- Stops for depth, height and length

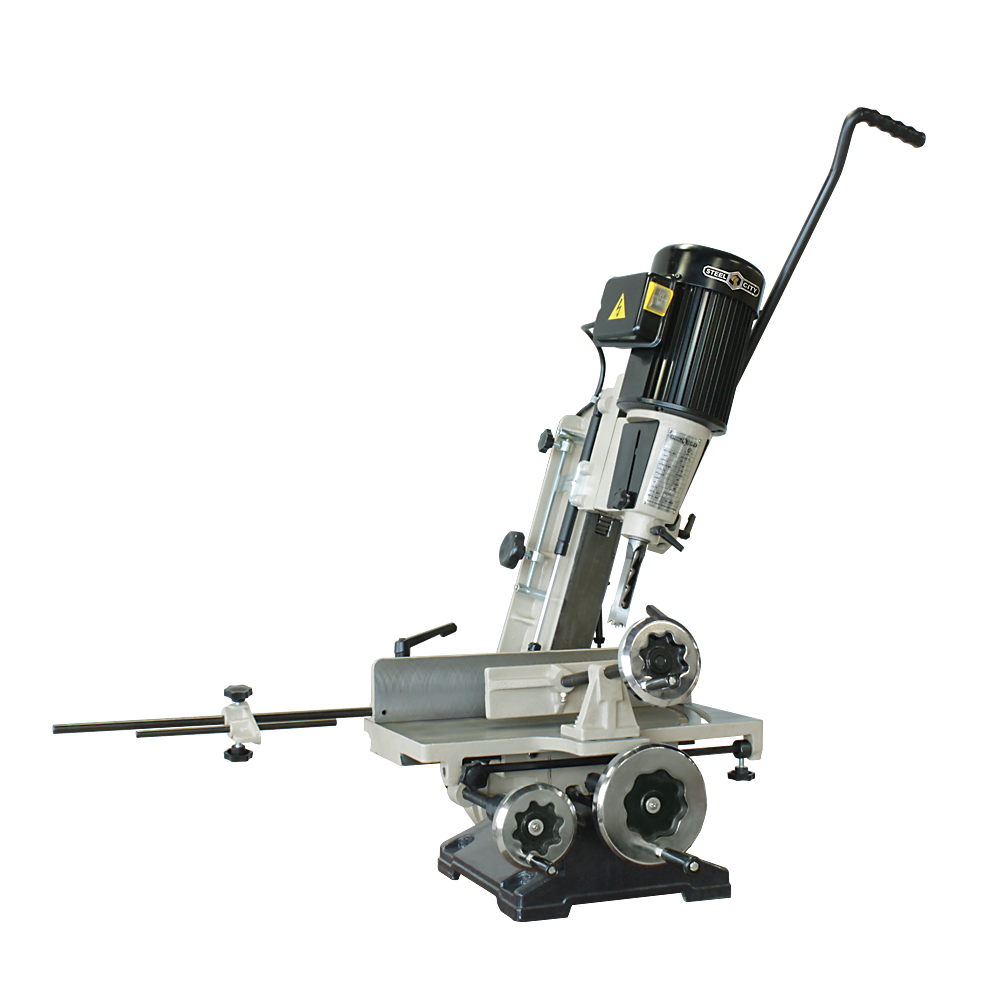

- Tilting head 30° left and right
- Adjustable swivel fence
- Dust protected switch
- Includes 1⁄4”, 3⁄8”, 1⁄2” and 3⁄4” mortising chisels bit set
Technical Specifications
| Motor |
1 HP - 110 V - 1ph - 10 A |
| Speed |
1720 RPM |
| Capacity of chisels |
1/4" to 1" |
| Table dimensions |
12-1/2 " X 18 " ( 318 X 458 mm ) |
| Maximum clearance with 1/4" chisel |
6-1/2" to 10-3/16" ( 165 à 259 mm ) |
| Maximum clearance between fence |
3" ( 77 mm ) |
| Shipping weight |
236 lb ( 108 kg ) |
